Description
Technical data
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

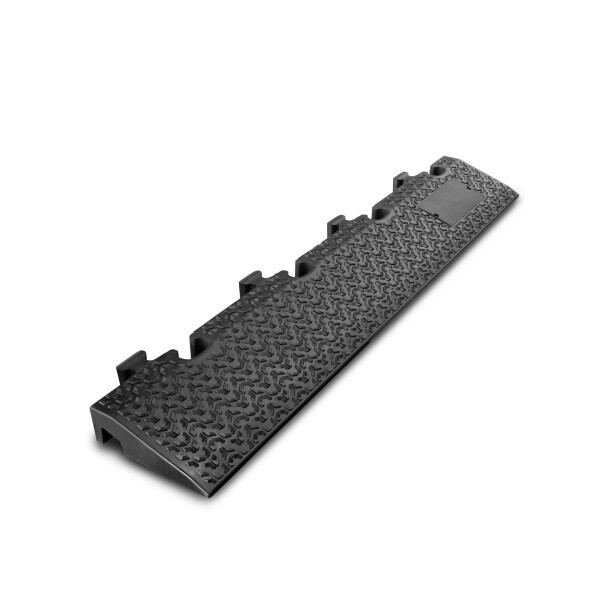

Productinformation in detailThe DEFENDER® 2D modular cable protectors have been developed with focus on optimum accessibility, on the basis of our popular cable protector DEFENDER® MIDI. The modular system consists of a middle section and a wheelchair accessible ramp, compatible with the DEFENDER® MIDI series, as well as a short ramp and middle section. The system can be extended and combined as required, both in length and in width. Extremely easy handling.
Technical data
| Product type | Cable Protectors |
| Type | Ramp Module |
| Material | Polyurethane |
| Length | 1000 mm |
| Height | 53 mm |
| Width | 172 mm |
| Color | Black |
| Max load | Approx. 5 t on a surface area of 25 x 30 cm |
| Chemical resistance | Oil-resistant |
| Chemical resistance | Petrol-resistant |
| Chemical resistance | Short-term contact with solvents |
| Hardness range | 88 Shore ± 4 A Shore |
| Fire protection class | Class E in accordance with DIN EN 13501-1 (B-s1 pending) |
| Temperature range | -30 to + 60 °C |
| Special feature | 2D cable bridge (modular in length and width) |
| Weight | 4,3 kg |
