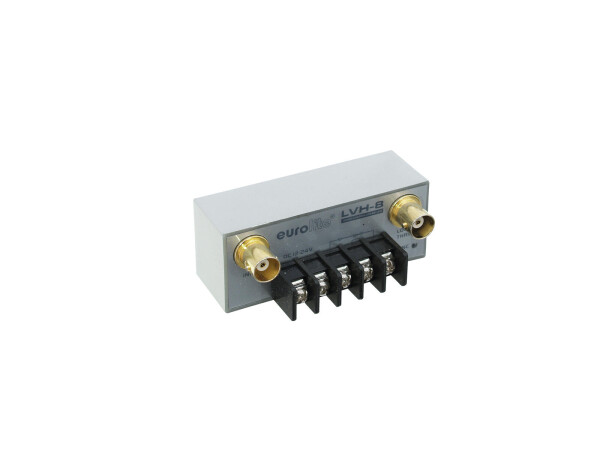

LVH-8 Video controlled relay
35.00 CHF *
disponible
Description
Caractéristiques techniques
Variations
Alle Variationen zu diesem ArtikelDescription
Artikelinfos im Detail VIDEO CONTROLLED RELAYThe LVH-8 serves as a video presence detector for an audio/video system. The unit generates a control signal based on the absence or presence of valid video signals. The unit responds to NTSC and PAL signals and features a feed-through output. Power connections are made using block terminals.
Video controlled relay
- Detection of video
- NTSC and PAL compatible
- Bridging or terminated operation
- LED indicator
- 12-24 V DC power supply via block terminals (PSU not included)
- Ultra compact
| Power supply: | 12-24 V DC 74 mA |
| Connections: | 2 x BNC (F) Screw terminal |
| Dimensions: | Width: 7,6 cm Depth: 4,1 cm Height: 3,1 cm |
| Weight: | 70 g |
| 1 x video input: | 0.5-1 Vpp/75 ohms BNC, ground referenced |
| 1 x video output: | Feed-through/ BNC, ground referenced |
| Control output: | N/O or N/C contacts |
| Relay contacts: | Single-pole, double-throw |
| Max. switching power: | 60 W, 125 VA |
| Max. switching voltage: | 220 V AC, 250 V DC |
| Max. switching current: | 2 A |
| Max. continuous switching current: | 3 A |
Caractéristiques techniques
| Power supply: | 12-24 V DC 74 mA |
| Dimensions: | Width: 7,6 cm Depth: 4,1 cm Height: 3,1 cm |
| Weight: | 70 g |
| 1 x video input: | 0.5-1 Vpp/75 ohms BNC, ground referenced |
| 1 x video output: | Feed-through/ BNC, ground referenced |
| Control output: | N/O or N/C contacts |
| Relay contacts: | Single-pole, double-throw |
| Max. switching power: | 60 W, 125 VA |
| Max. switching voltage: | 220 V AC, 250 V DC |
| Max. switching current: | 2 A |
| Max. continuous switching current: | 3 A |
