All variations to this product.Description

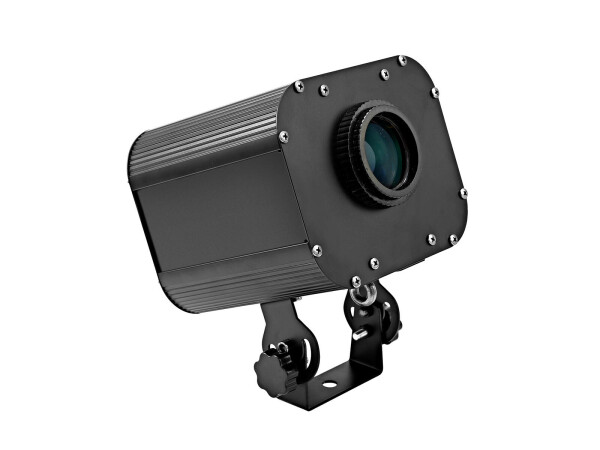

Productinformation in detailLED color changer with 90 W LED, gobo and color wheel
- Compact design
- Beam reducer gobos make it perfect for illuminating mirror balls
- 1 powerful LED 90 W COB (chip-on-board) cold white (CW)
- Focus manual
- Color change; Dimmer electronic
- Gobo effect
- Color wheel with 7 dichroic filters plus open
half colors selectable; rainbow effect with adjustable speed - Gobo wheel with static gobos, 4 gobos, 3 color dichros and open
shake effect - 5 integrated show programs
- The device is cooled by cooling fan
- Control via DMX; sound to light via microphone; master/slave function; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- DMX fail mode (hold; blackout; auto; sound)
- With a beam angle of 11°
- With mounting bracket
- Monochrome LCD display
- For application areas such as: Clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels
- Application possibility: Suspended; on stand
Scope of delivery
- 1 x light effect
- 1 x user manual
- 1 x power cord
- 1 x mounting bracket
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 95 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 90 W COB (chip-on-board) cold white (CW) |
| Flash rate: | 2 - 29 Hz |
| Equipment: | Focus manual |
| Color generation: | Color wheel with 7 dichroic filters plus open Half colors selectable; rainbow effect with adjustable speed |
| Gobos: | Gobo wheel with static gobos, 4 gobos, 3 color dichros and open Shake effect |
| DMX channels: | 6 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | 1 x cooling fan |
| Control: | DMX; sound to light via microphone; master/slave function; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Projection: | Flicker-free |
| PWM frequency: | 5500 Hz |
| DMX fail mode: | Hold; blackout; auto; sound |
| Beam angle: | 11° |
| Beam angle (1/2 peak): | 11° |
| Beam angle (1/10 peak): | 11° |
| Lamp life: | 20000 h |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | Monochrome LCD display |
| USB port: | 1 x type A |
| Diameter mounting holes: | 1 x Ø10mm |
| Material: | Steel |
| Dimensions: | Length: 17.5 cm Width: 16.0 cm Height: 21.0 cm |
| Weight: | 2.48 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Technical data
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 95 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 90 W COB (chip-on-board) cold white (CW) |
| Flash rate: | 2 - 29 Hz |
| Equipment: | Focus manual |
| Color generation: | Color wheel with 7 dichroic filters plus open Half colors selectable; rainbow effect with adjustable speed |
| Gobos: | Gobo wheel with static gobos, 4 gobos, 3 color dichros and open Shake effect |
| DMX channels: | 6 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | 1 x cooling fan |
| Control: | DMX; sound to light via microphone; master/slave function; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Projection: | Flicker-free |
| PWM frequency: | 5500 Hz |
| DMX fail mode: | Hold; blackout; auto; sound |
| Beam angle: | 11° |
| Beam angle (1/2 peak): | 11° |
| Beam angle (1/10 peak): | 11° |
| Lamp life: | 20000 h |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | Monochrome LCD display |
| USB port: | 1 x type A |
| Diameter mounting holes: | 1 x Ø10mm |
| Material: | Steel |
| Dimensions: | Length: 17.5 cm Width: 16.0 cm Height: 21.0 cm |
| Weight: | 2.48 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
