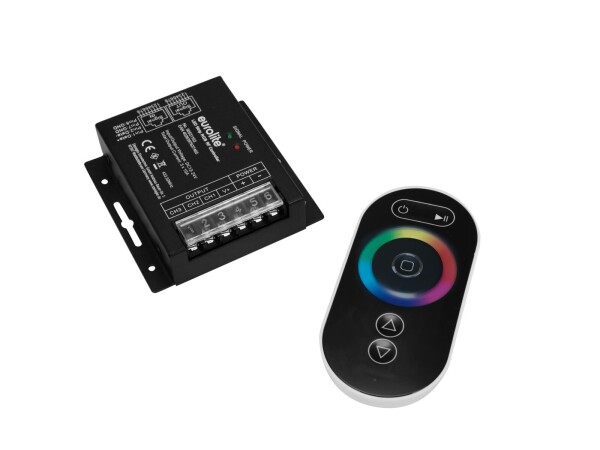

LED Strip RGB RF Controller

Controller with wireless remote control for LED stripsUse the EUROLITE LED Strip RGB RF Controller to control your RGB LED strips for 12 to 24 volts. The supplied ergonomic, user-friendly remote control with touch-sensitive color wheel is well designed so that you can select the color conveniently.The controller offers you ten integrated programs - you can also adjust the speed and brightness.If the remote control is not used for a longer period of time, it automatically switches to standby mode. A simple movement or slight shaking turns the remote on again. This function increases the life of the three micro-batteries included in the package.The range is up to 20 meters.

3-channel LED controller with wireless remote control for RGB LED strips 12-24V

• For controlling RGB LED strips 12-24 V
• Color selection via touch-sensitive color wheel
• RJ45 jacks for serial connection
• 10 integrated show programs
• Control via Wireless remote control
• Operating range up to 20m
• Dimmer electronic; program speed adjustable

Package contents

• 1 x controller, 1 x user manual, 1 x transmitter, 1 x declaration of conformity

Power supply:	12/24V DC
Power consumption:	Max. 360 W 12 V DC Max. 720 W 24 V DC 120 W 12 V DC per channal 240 W 24 V DC per channal
Output current:	Max. 3 x 10 A per channal
Power connection:	Mains input via screw terminal
Power output:	4 x screw terminal
Battery:	Micro (AAA) (not included)
Control:	Wireless remote control
Range:	Range up to 20m
Carrier frequency:	433,920 MHz
Connections:	Signal via 2 x RJ-45 (F) mounting version Screw terminal
Dimensions:	Length: 9 cm Width: 9 cm Height: 2,4 cm
Weight:	260 g
Remote control
Dimensions:	Height: 2,2 cm
