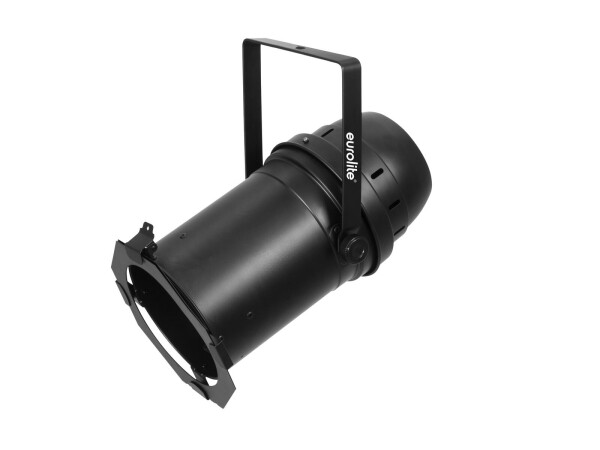

Productinformation in detailPAR spot with warm white 100 W COB LED and manual zoom
- Light performance comparable to a traditional 1000 W halogen spot light
- Homogeneous light distribution
- 1 powerful LED 100 W COB (chip-on-board) warm white (WW)
- Strobe effect
- The device is cooled by cooling fan
- Control via DMX
- Flicker-free
- With a beam angle of 11° - 48°
- Very high color rendering index (CRI)
- With Mounting bracket
- 4 digit 7-segment LED display
- For application areas such as: Theater; Trade fair and shop fitting; Stage; Rental
- Dimmer speed (step response) adjustable; Gamma correction adjustable; pulse-width modulation variable
- Preprogrammed in Light´J; Light Captain
- Mains input and output for power linking up to 8 units
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x power cord, 1 x filter frame, 1 x xLR cable, 1 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 110 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 1 x 100 W COB (chip-on-board) warm white (WW) |
| Color temperature: | 3000K |
| Flash rate: | 0 - 25 Hz |
| DMX channels: | 1; 2; 3 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX |
| Preprogrammed in: | Light´J; Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 11° - 48° |
| Beam angle (1/2 peak): | 11 - 35° |
| Beam angle (1/10 peak): | 15 - 48° |
| Color rendering index (CRI): | 91 Ra |
| Illuminance in Lux (lx): | Narrow warm white (WW) 3m: 15535 lx, 6m: 3666 lx Wide warm white (WW) 3m: 2387 lx, 6m: 654 lx |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Aluminum; metal |
| Dimensions: | Width: 26 cm Depth: 43,5 cm Height: 37,5 cm |
| Weight: | 3,55 kg |
| Noise classification: | Class 2 (slight noise) |
| Power cord | |
| Cable construction: | 3 x 1,0 mm² H05VV-F |
| Cable length: | Approx. 1,5 m |
| XLR cable | |
| Cable length: | Approx. 1,8 m |
| Color: | Black |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø10mm; 2 x Ø8mm |
| Material: | Aluminum, 4 mm |
| Filter frame | |
| Shape: | Octagonal |
| Material: | Aluminum, 0,5 mm |
| Dimensions: | Width: 24,8 cm Height: 24,8 cm Diameter: Ø 19,8 cm |
Merkmale
| Item information | Value |
|---|---|
| Power: | 101W - 200W |
| Light source: | LED |
| light color: | ww - warm white |
| Item weight: | 4,70 kg |
Technical data
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 110 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 1 x 100 W COB (chip-on-board) warm white (WW) |
| Color temperature: | 3000K |
| Flash rate: | 0 - 25 Hz |
| DMX channels: | 1; 2; 3 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | DMX; Light´J; Light Captain |
| Beam angle: | 11° - 48° |
| Beam angle (1/2 peak): | 11 - 35° |
| Beam angle (1/10 peak): | 15 - 48° |
| Color rendering index (CRI): | 91 Ra |
| Illuminance in Lux (lx): | Narrow warm white (WW) 3m: 15535 lx, 6m: 3666 lx Wide warm white (WW) 3m: 2387 lx, 6m: 654 lx |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digits 7-segment LED display |
| Dimensions: | Width: 26 cm Depth: 43,5 cm Height: 37,5 cm |
| Weight: | 3,55 kg |
| Noise classification: | Class 2 (slight noise) |
