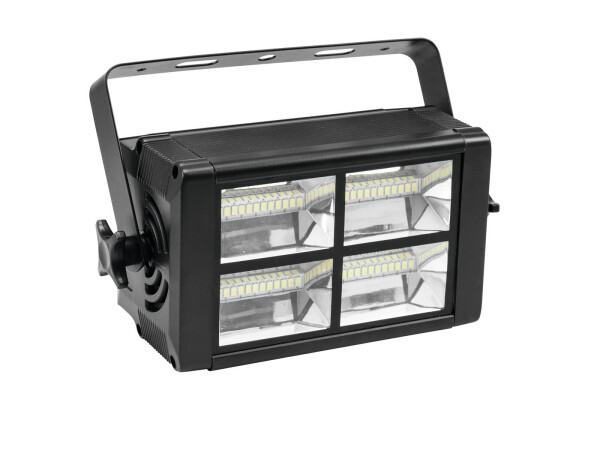

LED Mini Strobe Cluster SMD 48

This super-compact LED strobe is equipped with 48 bright SMD LEDs. You can choose from three different operation modes: master-slave, stand-alone and DMX mode (3 DMX channels). The integrated microphone makes for great lighting effects to the rhythm of the music. The flash frequency is 1-18 flashes per second. Thanks to the mounting bracket, the strobe can easily be mounted to a wall or ceiling. The fixture has 3-pin DMX connectors as well as a power cord to connect it to the mains.

Compact strobe with 48 SMD LEDs, adjustable flash freuquency + DMX

• 48 powerful LEDs SMD cold white (CW)
• Strobe effect
• Control via stand-alone; DMX
• Preprogrammed in Light´J; LED PC-Control 512; Light Captain
• With Mounting bracket
• For application areas such as: Clubs/dancing school; Party room; mobile djs / entertainer; small rental
• Very quiet working noise
• Application possibility: Suspended

Package contents

• 1 x light effect, 1 x user manual

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	20 W
Protection class:	Protection class I
Power connection:	Fixed power supply cord with safety plug
Lamp type:	LED lamp
LED:	48 x SMD cold white (CW)
Flash rate:	0 - 18 Hz
DMX channels:	3
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Control:	Stand-alone; DMX
Preprogrammed in:	Light´J; LED PC-Control 512; Light Captain
Attachment system:	Mounting bracket
Dimensions:	Width: 23 cm Depth: 9,5 cm Height: 15,5 cm
Weight:	1,06 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
