Description
Technical data
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

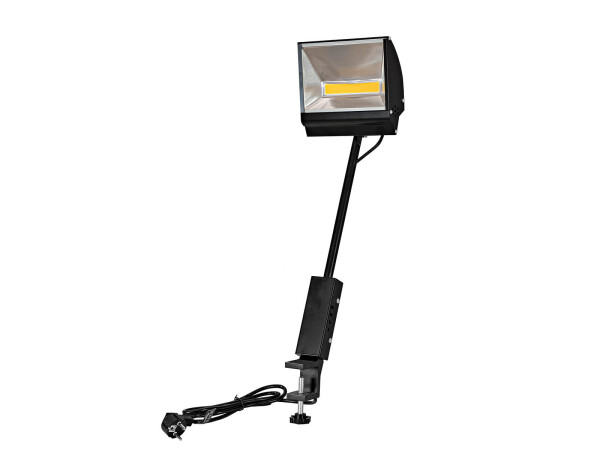

Productinformation in detail70 W LED floodlight with extension arm and screw terminal for fixation
- Unique design
- Inclination angle of the LED head manually adjustable
- Easy mounting via screw clamp
- For tabletops with up to 40 mm strength
- 1 powerful LED 70 W COB (chip-on-board) neutral white (NW)
- The device is cooled by passive convection cooling
- Control via plug and play
- Flicker-free
- With a beam angle of 70°
- Very high color rendering index (CRI)
- Various versions available
- For application areas such as: Trade fair and shop fitting; restaurants, bars and hotels; decoration; advertisement/Shop window
- Silent operation
- Application possibility: Wall mounting
Scope of delivery
- 1 x spotlight
- 1 x mounting material
- 1 x plate
- 1 x user manual
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 72 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | 0.8 m |
| LED type: | 1 x 70 W COB (chip-on-board) neutral white (NW) |
| Inclination angle: | 120 ° |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Projection: | Flicker-free |
| Beam angle: | 70° |
| Beam angle (1/2 peak): | Wash effect 70° monochrome |
| Beam angle (1/10 peak): | 120° |
| Color temperature: | 4200K |
| Color rendering index (CRI): | 93.2 Ra |
| Luminous flux maintenance: | 93 |
| Illuminance in Lux (lx): | Neutral white (NW) 1m: 728 lx, 3m: 138 lx, 6m: 42 lx |
| Luminous flux: | 6300 lm |
| Housing color: | Black |
| Material: | Aluminum casting; metal |
| Dimensions: | Width: 19 cm Depth: 7 cm Height: 66 cm |
| Weight: | 1.60 kg |
| Noise classification: | Class 0 (no noise at all) |
| Energy efficiency class (A - G): | F |
Technical data
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 72 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | 0.8 m |
| LED type: | 1 x 70 W COB (chip-on-board) neutral white (NW) |
| Inclination angle: | 120 ° |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Projection: | Flicker-free |
| Beam angle: | 70° |
| Beam angle (1/2 peak): | Wash effect 70° monochrome |
| Beam angle (1/10 peak): | 120° |
| Color temperature: | 4200K |
| Color rendering index (CRI): | 93.2 Ra |
| Luminous flux maintenance: | 93 |
| Illuminance in Lux (lx): | Neutral white (NW) 1m: 728 lx, 3m: 138 lx, 6m: 42 lx |
| Luminous flux: | 6300 lm |
| Housing color: | Black |
| Material: | Aluminum casting; metal |
| Dimensions: | Width: 19 cm Depth: 7 cm Height: 66 cm |
| Weight: | 1.60 kg |
| Noise classification: | Class 0 (no noise at all) |
| Energy efficiency class (A - G): | F |
