LED IP PST-10W 2700K Pinspot
70.00 CHF *
deliverable
Description
Technical data
Video
Alternative products
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

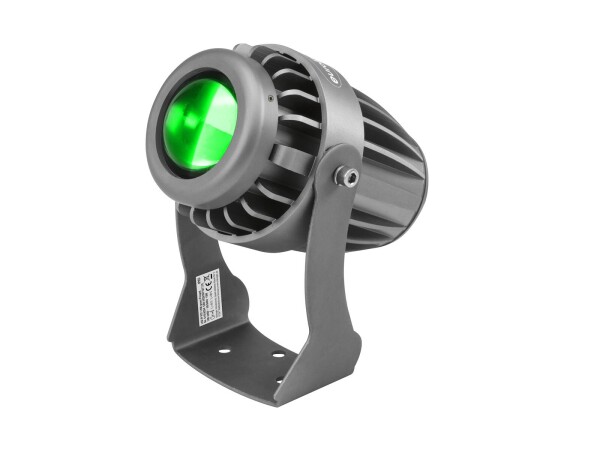

Productinformation in detailWeather-proof pinspot (IP65) with strong 10 W LED in green (G)
- Compact aluminum housing
- 1 powerful LED 10 W high-power green (G)
- Beam effect
- The device is cooled by passive convection cooling
- Control via plug and play
- With Mounting bracket
- Suitable for outdoor use IP65
- For application areas such as: Clubs/dancing school; architecture; restaurants, bars and hotels
- Silent operation
- Application possibility: Suspended
Package contents
- 1 x spotlight, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 10 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 1,0 mm² H05RN-F |
| Cable length: | Approx. 0,9 m |
| Lamp type: | LED lamp |
| LED: | 1 x 10 W high-power green (G) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle (1/2 peak): | 4° |
| Beam angle (1/10 peak): | 6° |
| Illuminance in Lux (lx): | 1m: 42708 lx, 3m: 5001 lx, 6m: 1273 lx |
| Housing color: | Grey |
| Attachment system: | Mounting bracket |
| Material: | Metal |
| Dimensions: | Width: 10,5 cm Depth: 15 cm Height: 14,7 cm |
| Weight: | 730 g |
| Noise classification: | Class 0 (no noise at all) |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø6mm |
| Material: | Metal, 2 mm |
Technical data
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 10 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 1,0 mm² H05RN-F |
| Cable length: | Approx. 0,9 m |
| Lamp type: | LED lamp |
| LED: | 1 x 10 W high-power green (G) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle (1/2 peak): | 4° |
| Beam angle (1/10 peak): | 6° |
| Illuminance in Lux (lx): | 1m: 42708 lx, 3m: 5001 lx, 6m: 1273 lx |
| Housing color: | Grey |
| Attachment system: | Mounting bracket |
| Material: | Metal |
| Dimensions: | Width: 10,5 cm Depth: 15 cm Height: 14,7 cm |
| Weight: | 730 g |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø6mm |
| Material: | Metal, 2 mm |
