All variations to this product.Description

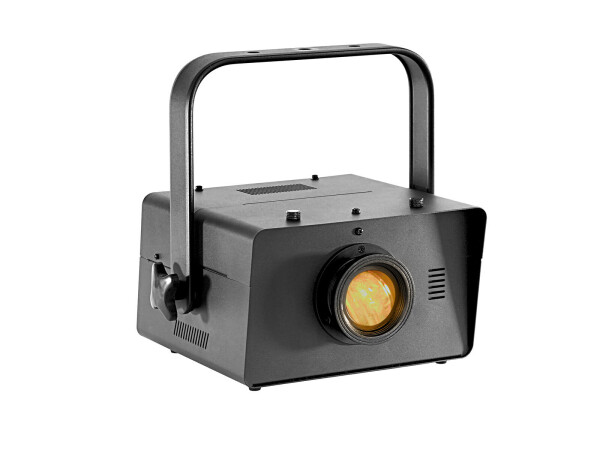

Productinformation in detailInnovative projection effect with magnetically interchangeable effect wheels
- 2 structure wheels, 1 animation wheel and 1 gobo wheel with 5 depictions included in the delivery
- Up to 2 wheels can be easily inserted via magnetic attachment systems
- Depending on the wheel combination, the sharpness setting and color choice, the effect produced is completely different
- 1 powerful LED 120 W COB (chip-on-board) 4in1 QCL RGBW
- Exact 16 bit resolution at Dimmer, color, gobo rotation
- Gobo wheel with static gobos; focus manual; animation wheel; texture wheel
- Dimmer electronic; dimmer curves with adjustable response; Dimmer speed (step response); pulse-width modulation adjustable; Rotation speed adjustable; Rotation direction adjustable; color fade adjustable
- Water effect; gobo effect; crystal effect
- Gobo wheel with static gobos, 5 gobos
- The device is cooled by temperature-controlled fan
- Control via DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB; RDM; stand-alone; master/slave function
- Flicker-free
- DMX fail mode (blackout; hold)
- With a beam angle of 35°
- With mounting bracket
- Monochrome OLED display
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector
- For application areas such as: Restaurants, bars and hotels; clubs/dancing school; wedding/gala/events; theater; stage; mobile djs / entertainer
- Very quiet working noise
- Application possibility: Suspended; on stand; wall mounting
- Preprogrammed in Light Captain
Package contents
- 1 x light effect, 1 x power cord, 1 x user manual, 4 x effect wheel
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 120 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: | 3 x 1.5 mm² H05VV-F |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A |
| Lamp type: | LED lamp |
| LED type: | 1 x 120 W COB (chip-on-board) 4in1 QCL RGBW |
| Flash rate: | 1 - 37 Hz |
| Equipment: | Gobo wheel with static gobos; focus manual; animation wheel; texture wheel |
| Gobos: | Gobo wheel with static gobos, 5 gobos |
| DMX channels: | 6; 10; 17; 20 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | 1 x temperature-controlled fan |
| Control: | DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB; RDM; stand-alone; master/slave function |
| Preprogrammed in: | Light Captain |
| Projection: | Flicker-free |
| DMX fail mode: | Blackout; hold |
| Beam angle: | 35° |
| Beam angle (1/2 peak): | 35° |
| Beam angle (1/10 peak): | 35° |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | Monochrome OLED display |
| USB port: | 1 x type A |
| Diameter mounting holes: | 3 x Ø10mm |
| Use of brands: | Built with SEETRONIC connector |
| Material: | Steel |
| Dimensions: | Length: 25.2 cm Width: 30.0 cm Height: 27.3 cm |
| Weight: | 4.90 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) depending on mode used |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Technical data
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 120 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: | 3 x 1.5 mm² H05VV-F |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A |
| Lamp type: | LED lamp |
| LED type: | 1 x 120 W COB (chip-on-board) 4in1 QCL RGBW |
| Flash rate: | 1 - 37 Hz |
| Equipment: | Gobo wheel with static gobos; focus manual; animation wheel; texture wheel |
| Gobos: | Gobo wheel with static gobos, 5 gobos |
| DMX channels: | 6; 10; 17; 20 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | 1 x temperature-controlled fan |
| Control: | DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB; RDM; stand-alone; master/slave function |
| Preprogrammed in: | Light Captain |
| Projection: | Flicker-free |
| DMX fail mode: | Blackout; hold |
| Beam angle: | 35° |
| Beam angle (1/2 peak): | 35° |
| Beam angle (1/10 peak): | 35° |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | Monochrome OLED display |
| USB port: | 1 x type A |
| Diameter mounting holes: | 3 x Ø10mm |
| Use of brands: | Built with SEETRONIC connector |
| Material: | Steel |
| Dimensions: | Length: 25.2 cm Width: 30.0 cm Height: 27.3 cm |
| Weight: | 4.90 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) depending on mode used |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
