All variations to this product.Description

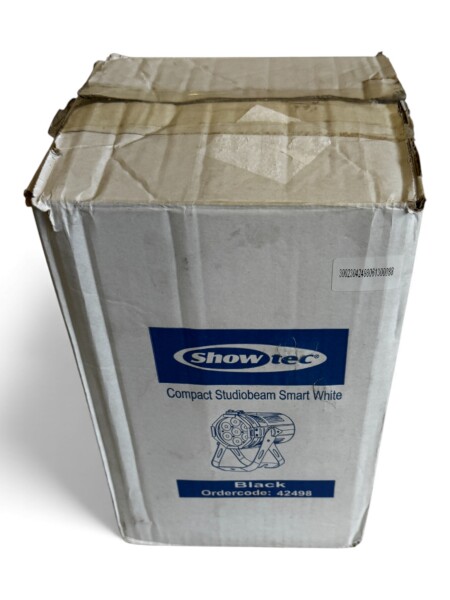

Productinformation in detailThe new Studiobeam SW is ideal for lighting stages, TV studios and events. The device is equipped with specially designed Smart White LEDs in cool white, warm white and amber colours, offering excellent white balance control in a single package.
The Studiobeam SW has a Powercon input and output as well as a three- and five-pin XLR connector. DMX addressing is done via a bright and easy-to-use display.
The device was a display model and shows no signs of wear.
Technical data
| Attribute | Value |
|---|---|
| Lux (@ 2 m) Cool white | 4934 lux |
| Lux (@ 2 m) Warm white | 4032 lux |
| Lux (@ 2 m) Amber | 1884 lux |
| Max. distance | 10 m |
| Colour range | 2,400 K – 6,000 K |
| Number of LEDs | 18 × 3 × 3 W (KW + WW + Amber) |
| Drive current | 120 V / 60 Hz: 1.157 A 230 V / 50 Hz: 0.626 A |
| Input voltage | AC 110–240 V / 47–63 Hz |
| Power | Max. 140 W |
| Display | LCD display for automatic and individual control |
| Control | DMX-512 (3 and 5 channels), auto, master/slave |
| Dimmer | 0–255 |
| Strobe | 0–20 Hz |
| Beam angle | 20 |
| Housing | Cast aluminium |
| Colour | Black |
| DMX connection | 3 + 5 pins |
| Cooling | Fan |
| Protection class | IP21 |
| Dimensions | 278.1 × 228.6 × 358 mm |
| Weight | 4.8 kg |
| Repetition frequency | 1,000 Hz |
