All variations to this product.Description

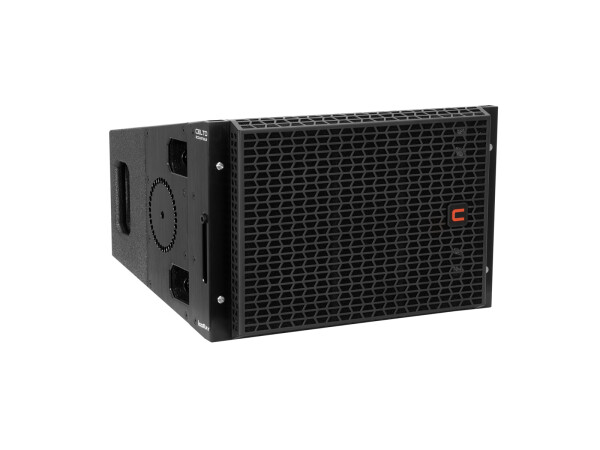

Productinformation in detail IsoRay10 coaxial passive line source speaker is suitable for near to far field main PA reinforcement in line arraytopolgy with subwoofer for mobile and permanent installations.Suitable in situations like:-FoH-Live Shows-Multi-functional Rooms-Auditoriums and theaters-Sports Center-House of Worship
Game changer, all-in-one full-range coaxial line source
- 10'' ultra compact line source
- Real 450W RMS power capacity (8 hours pink noise)
- Tiny A3 paper size format
- Unmatched size/SPL ratio
- 16 ohm (passive) for high power density
- Up to 24 speakers per array with 12 times safety
- With Mounting bracket
- Wheelboard optional
- Rubberized Polyurea coating
Package contents
- 1 x top
| Power: | Program: 900W Rated: 450W RMS |
| Frequency range: | 95 - 22000 Hz |
| Sensitivity: | 98 dB (1W/1m) |
| Max. SPL: | 136 dB |
| Dispersion angle: | 100° x 12° (array dependent) |
| Impedance: | 16 ohms |
| Attachment system: | Mounting bracket |
| Flying points: | With integrate rigging system |
| Connections: | Input: 2 x 4-pol SpeakON mounting version (F) |
| Crossover frequency: | 1100 Hz |
| Speaker: | 1 x midrange speaker 10" with neodymium magnet Basket material: aluminum Voice coil midrange speaker 3" Diaphragmmaterial: PEEK (H.T. polymer) 1 x Annular compression driver 1" Voice coil annular 1,75" |
| Type of speaker: | Coaxial speaker |
| Transport aid: | Wheelboard optional |
| Material: | Birch multiplex |
| Color: | Black, rubberized Polyurea coating |
| Dimensions: | Width: 42 cm Depth: 39 cm Height: 28 cm |
| Weight: | 16,75 kg |
Technical data
| Power: | Peak: 1800W Program: 900W Rated: 450W RMS |
| Frequency range: | 95 - 22000 Hz |
| Sensitivity: | 98 dB (1W/1m) |
| Max. SPL: | 136 dB |
| Dispersion angle: | 100° x 12° (array dependent) |
| Impedance: | 16 ohms |
| Attachment system: | Mounting bracket |
| Flying points: | With integrate rigging system |
| Control elements: | Mode switch (1+1- / 2+2-) |
| Connections: | Input: 2 x 4-pol SpeakON mounting version (F) |
| Crossover frequency: | Passive 1100 Hz |
| Speaker: | 1 x midrange speaker 10" with neodymium magnet Basket material: aluminum Voice coil midrange speaker 3" 1 x annular compression driver 1" with neodymium magnet Voice coil annular 1,75" Diaphragmmaterial: PEEK (H.T. polymer) with wave guide |
| Type of speaker: | Coaxial speaker |
| Type of construction: | Vented |
| Transport aid: | Wheelboard optional |
| Material: | Birch multiplex, CNC made with tongue and grove assembly |
| Color: | Black, rubberized Polyurea coating |
| Dimensions: | Width: 42 cm Depth: 39 cm Height: 28 cm |
| Weight: | 16,75 kg |
