019350 B - Plastazote® (LD29) 2000 x 1200 x 50 mm
RRP 217.00 CHF
192.00 CHF *
deliverable
Description
technical specifications
Others also bought:
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description
Productinformation in detailHARTING connector housings are characterized by high reliability in demanding industrial environments. The materials used have been tried and tested for decades, so that styles A and B in particular have become the standard for industrial connectors.
Almost every design is available in four environmental versions:
- Han® Standard optimized for use within manufacturing facilities.
- Han® M for harsh climatic atmospheres
- Han® HPR for demanding interfaces on vehicles
- Han® EMC for special requirements with high shielding effectiveness
Depending on the installation situation, a choice can be made between transverse and longitudinal brackets, as well as screw locking and central locking, depending on the series. The housings meet the requirements for robustness, good operability and vibration resistance in proven HARTING quality.
Han® connector housings have been continuously adapted to the needs of the application situation for over 50 years, so that the housing variety covers almost all conceivable application requirements.
technical specifications

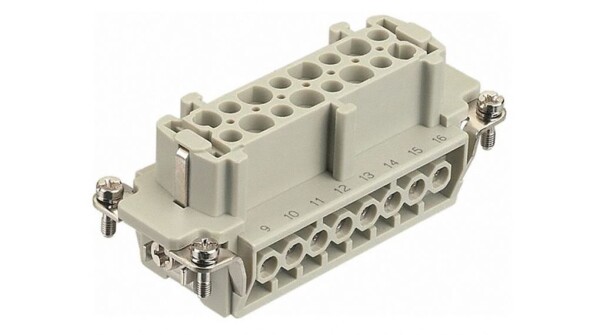

- Description: Han 16E-bu-s
- Series: Han® E- Size: 16 B
- Connection type: Screw connection
- Conductor cross section AWG, min.: 18 AWG
- Conductor cross section AWG, max.: 14 AWG
- Tightening torque, max.: 0.5 Nm
- Rated current pollution degree 3: 16 A
- Rated voltage pollution degree 3: 500 V
- Rated impulse voltage pollution degree 3: 6 kV
- Pollution degree 3: 3
- Rated voltage according to UL: 600 V
- Limit temperature, min.: -40 °C
- Limit temperature, max.: 125 °C
- Color of insert: RAL 7032 (light gray)
- Flammability Insert according to UL 94: V 0
- Wire protection: Yes- Approval UL: Yes
- Approval CSA: Yes
- Number of contacts: 16
- Conductor cross section mm², min.: 0.75 mm2
- Conductor cross-section mm², max.: 2.5 mm2
- Material insert: Polycarbonate
- Mechanical life
- Mating cycles: >= 500
- PE protective conductor: Yes
