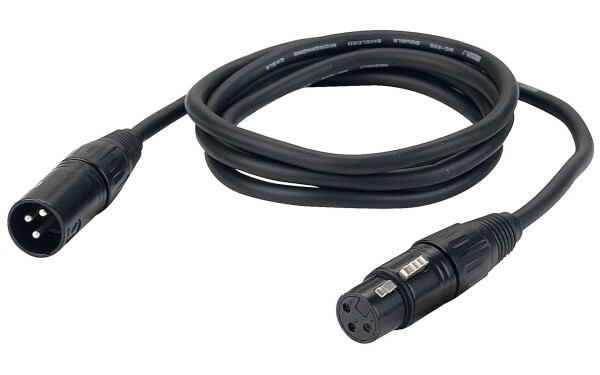

FL01 - bal. XLR/M 3 p. to XLR/F 3 p. 15 m

Product information - DAP FL01 - Basic microphone cable 15m

The FL-01 is THE basic microphone cable for all-round use.
The FL-01 has a high quality, e.g. low noise, a wide dynamic range as well as flexibility and road suitability.

Specifications and connections

-Surge voltage: 30 V
-Impedance: 110
-Connection 1: XLR 3P
-Connection 2: XLR 3P
-Cable length: 15 m
-Contacts: 3
-Cable resistance: 90 O/km
-Capacitance conductor: 60 pF/m
-Capacitance conductor shield Inner conductor: 78 pF/m
-Outer cable diameter: 6 mm
-Outer insulation diameter: 6 mm
-Outer insulation type: PVC
-Weight: 0.78 kg
-Material: PVC
-Color: Black
-Contact type: Copper
-1. shield: Conductive plastic
-2. shield: Oxygen-free copper
-Shield resistance: 25 O/km
-Conductors: 3
-Maximum ambient temperature: 60 °C
-Minimum ambient temperature: -20 °C
