Circle KON 400-4 2m outside-diameter (4 cut)
1'810.70 CHF *
sur demande
Description
Merkmale
Caractéristiques techniques
articles semblables
Variations
Alle Variationen zu diesem ArtikelDescription

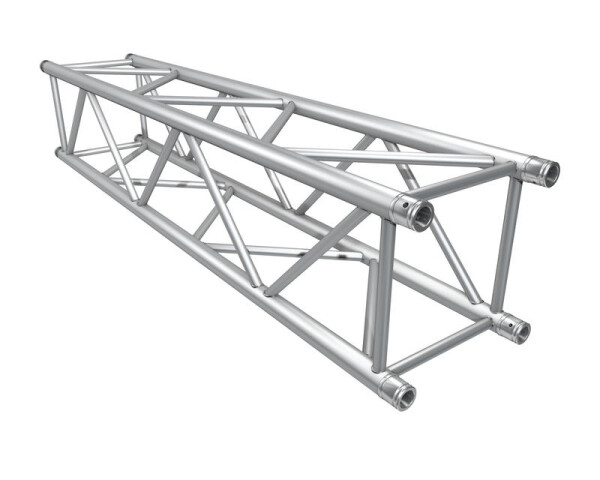

Artikelinfos im DetailThe F44P truss series by Global Truss is a TÜV approved 4-point system with an external dimension of 40cm. The system off ers an outstanding load capacity and low deflection, ideal for complex constructions with high loads, along with stage systems and permanent installations. The characteristics of this truss is perfect for heavy duty tower applications. Due to the higher main tube wall thickness even greater loads can be supported than with the F44 are possible. Nevertheless both systems are compatible with each other. A maximum span of up to 20 meters can be created with this system.
 .
The F44P truss is built with 50 x 3mm main tubes and 25 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
Merkmale
| #productDetails.itemInformation# | #productDetails.itemValue# |
|---|---|
| Longueur cm: | 200 |
| Poids de l'article: | 20,77 Kg |
Caractéristiques techniques
General
- Colour Aluminum
- TÜV certificate Yes
- Material Al EN AW-6082 T6
Technical Data
- Number of points 4-point
- Edge dimension 40 cm
- System F44P
- Type straight
- Truss length 200 cm
main pipe
- Diameter main pipe 50 mm
- Wall thickness main pipe 3 mm
Brace
- Diameter Brace 25 mm
- Wall thickness Brace 3 mm
Hardware
- Dimensions (L/W/H) 2000 x 400 x 400 mm
- Weight 15,80 kg
