Aluminium Tube 6082 50x2mm 1m black
47.90 CHF *
deliverable
Delivery time: 6 - 7 Workdays
Description
Merkmale
Technical data
Similar items
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

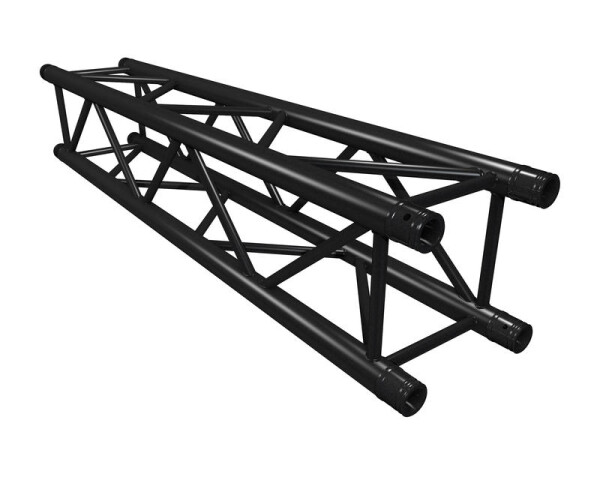

Productinformation in detailThe F34P truss series by Global Truss is a TÜV approved 4-point system with an external dimension of 29cm. Due to its perfect load capacity in relation to its weight and dimensions this system is one of the most commonly used. Exhibition stands and shop fittings as well as stage roofs and other outdoor applications can be built with the trusses of the F34P system. Due to the higher wall thickness compared to the F34 truss it offers a greater load capacity, nevertheless both systems are compatible. The system offers a maximum span of up to 18 meters.
 .
The F34P truss is built with 50 x 3mm main tubes and 20 x 2mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
Technical data
General
- Colour black
- TÜV certificate Yes
- Material Al EN AW-6082 T6
Technical Data
- Number of points 4-point
- Edge dimension 29 cm
- System F34P
- Type straight
- Truss length 100 cm
main pipe
- Diameter main pipe 50 mm
- Wall thickness main pipe 3 mm
Brace
- Diameter Brace 20 mm
- Wall thickness Brace 2 mm
Hardware
- Dimensions (L/W/H) 1000 x 290 x 290 mm
- Weight 9,00 kg
