F34 50cm
PVR 177.00 CHF
147.00 CHF *
assez en stock
Description
Caractéristiques techniques
Des clients ont aussi acheté en même temps les produits suivants
Variations
Alle Variationen zu diesem ArtikelDescription

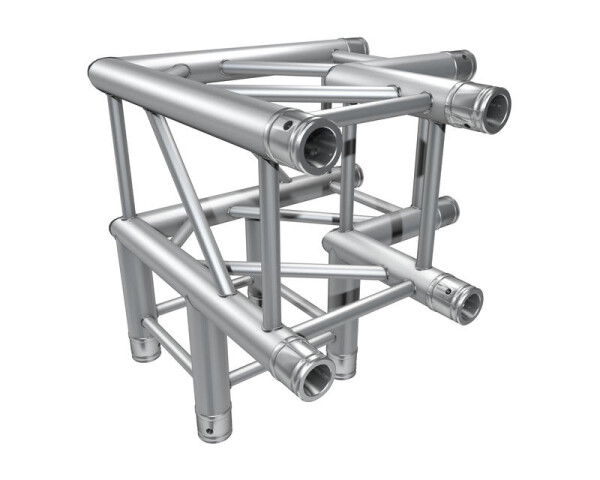

Artikelinfos im DetailThe F34 truss series by Global Truss is a TÜV approved 4-point system with an external dimension of 29cm. Due to its perfect load capacity in relation to its weight and dimensions this system is one of the most commonly used. Exhibition stands and shop fittings as well as stage roofs and other outdoor applications can be built with the trusses of the F34 system. The system off ers a maximum span of up to 18 meters.
 .
The F34 truss is built with 50 x 2mm main tubes and 20 x 2mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
Caractéristiques techniques
| Couleur | Aluminium |
| Certificat TÜV | Non |
| Matériel | Al EN AW-6082 T6 |
| Nombre de points | 4 points |
| Dimension des bords | 29 cm |
| Système | F34 |
| Type | Coin |
| Diamètre du tube principal | 50 mm |
| Épaisseur de paroi du tube principal | 2 mm |
| Diamètre du brace | 20 mm |
| Épaisseur de paroi de la brace | 2 mm |
| Dimensions (L/L/H) | 500 x 500 x 500 mm |
| Poids | 6,85 kg |
