Pre-order
F32 50cm
RRP 83.00 CHF
72.50 CHF *
Available from: 10.12.2026 (Pre-orders possible)
Description
Technical data
Others also bought:
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

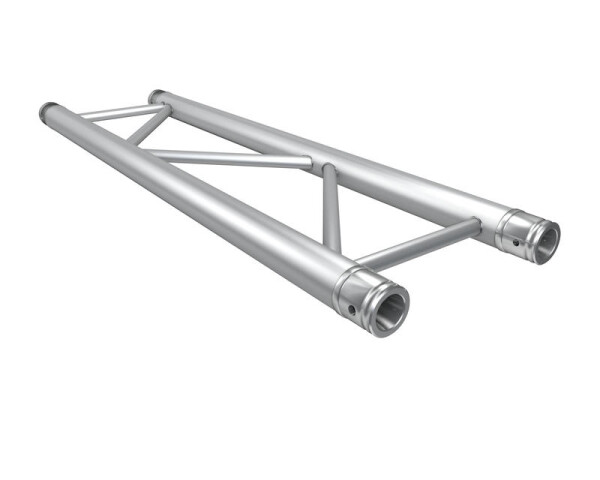

Productinformation in detailThe F32 truss series by Global Truss is a TÜV approved 2-point system with an external dimension of 29cm. Grid constructions for exhibition stands or permanent installations are possible with this system. Short outrigs or cross ways with little loads can also be created. As a grid a maximum span of up to 10 meters can be used.
 .
The F32 truss is built with 50 x 2mm main tubes and 20 x 2mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
Technical data
| Colour | Aluminium |
| TÜV certificate | Yes |
| Material | Aluminium EN AW-6082 T6 |
| Number of points | 2-point |
| Edge dimension | 29 cm |
| System | F32 |
| Type | Straight |
| Truss length | 100 cm |
| Main tube diameter | 50 mm |
| Wall thickness of main tube | 2 mm |
| Brace diameter | 20 mm |
| Brace wall thickness | 2 mm |
| Brace weight | 2.50 kg |
