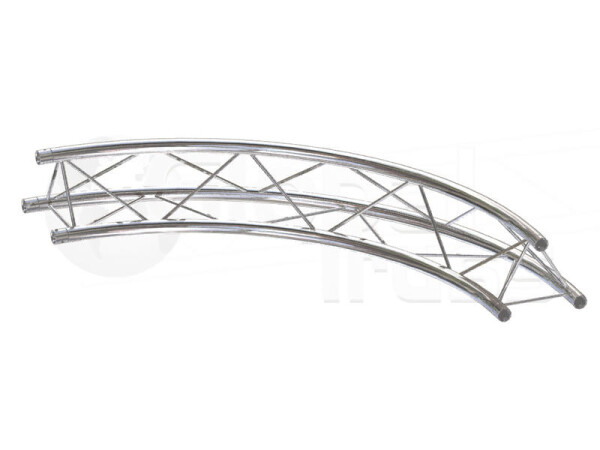

Artikelinfos im DetailThe F23 truss series by Global Truss is a TÜV approved 3-point system with an external dimension of 22cm. The series is perfect for small constructions, banner frames or permanent installations for lighting and sound along with use in shops. A maximum span of up to 10 meters can be used.
 .
The F23 truss is built with 35 x 1.6mm main tubes and 8mm diagonal braces of aluminium. The truss lengths are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
Caractéristiques techniques
General
- Colour Aluminum
- TÜV certificate No
- Material Al EN AW-6061 T6
Technical Data
- Number of points 3-point
- Edge dimension 22 cm
- System F23
- Type circle
Circle
- Diameter circle 8000 mm
- Excerpt 60°
main pipe
- Diameter main pipe 35 mm
- Wall thickness main pipe 1,60 mm
Brace
- Diameter Brace 8 mm
Hardware
- Weight 11,30 kg
