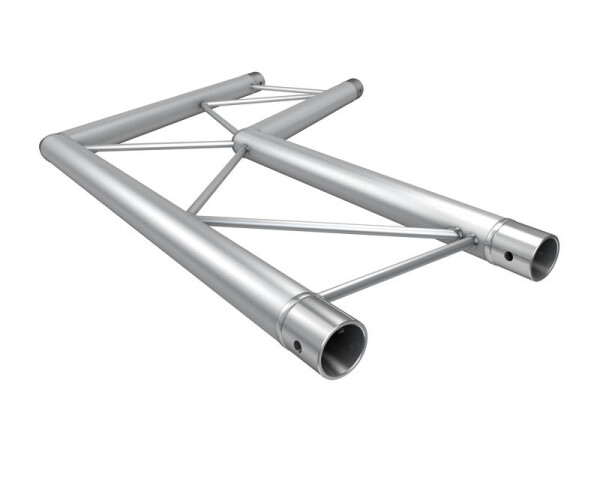

F22 2-way corner C22 120° H, 90.90 CHF

Similar items

The F22 truss series by Global Truss is a TÜV approved 2-point system with an external dimension of 22cm. The series is perfect for small constructions with a low load for exhibition stands and permanent installations. A maximum span of up to 7 meters can be used.

&nbsp.

The F22 truss is built with 35 x 1.6mm main tubes and 8mm diagonal braces of aluminium. The truss lengths are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.

General

Colour Aluminum
TÜV certificate No
Material Al EN AW-6061 T6

Technical Data

Number of points 2-point
Edge dimension 22 cm
System F22
Type corner
Truss length 50 cm

Circle

Excerpt 120°

main pipe

Diameter main pipe 35 mm
Wall thickness main pipe 1,60 mm

Brace

Diameter Brace 8 mm

Hardware

Dimensions (L/W/H) 500 x 500 x 035 mm
Weight 1,42 kg
