Global Truss

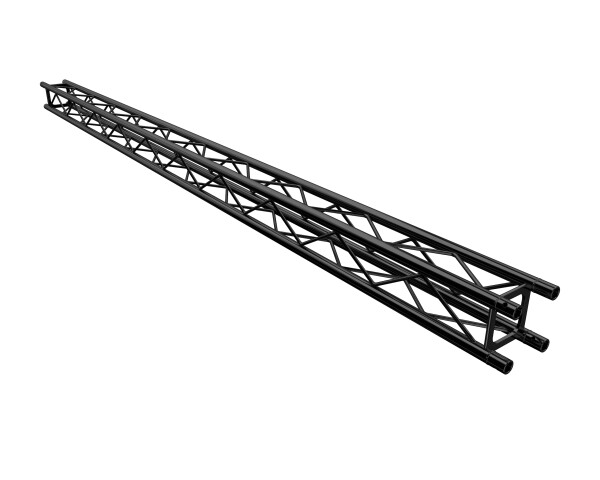

F14 200cm stage black

SKU: BKF14200-B GTIN: 4042659138136 Category: F14 Straights black

Length: 200 cm
Pipe diameter: 20 mm
Wall thickness: 2 mm
TÜV Certified
Conical connectors included

Available from: 22.10.2026 (Pre-orders possible)

Delivery time: ca. 4 months

RRP: ~~226.00 CHF~~

188.00 CHF

16%

incl. 8,1% VAT , plus

Pay securely with:

Similar items

The F14 truss series by Global Truss is a TÜV approved 4-point system with an external dimension of 10cm. The small footprint of the truss is perfect for shop fitting and constructions with minimal loads. A maximum span of up to 7 meters can be used.

&nbsp.

The F14 truss is built with 20 x 2mm main tubes and 6mm diagonal braces of aluminium, whilst the extra end frame improves the stability of the truss. The truss lengths are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.

Item information	Value
Color:	black
Length cm:	200
Item weight:	4,15 kg

General

Colour black
TÜV certificate Yes
Material Al EN AW-6061 T6

Technical Data

Number of points 4-point
Edge dimension 10 cm
System F14
Type straight
Truss length 200 cm

main pipe

Diameter main pipe 20 mm
Wall thickness main pipe 2 mm

Brace

Diameter Brace 5 mm

Hardware

Dimensions (L/W/H) 2000 x 100 x 100 mm
Weight 4,00 kg
