Global Truss

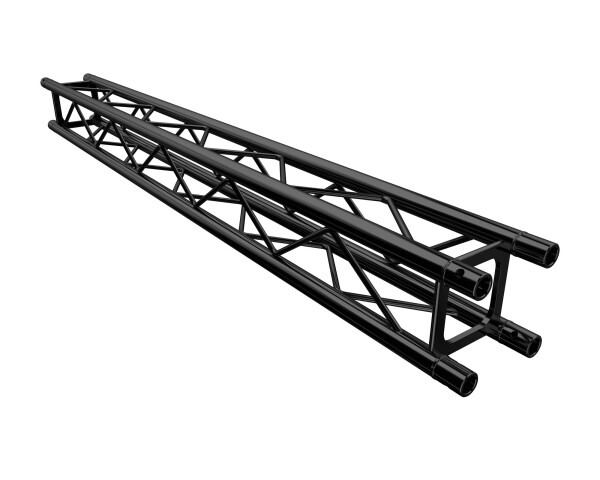

F14 100cm stage black

Numéro d'article: BKF14100-B Code barre – EAN: 4042659138112 catégorie: F14 Droites noirs

Length: 100 cm
Pipe diameter: 20 mm
Wall thickness: 2 mm
TÜV Certified
Conical connectors included

Disponible à partir de: 05.11.2026 (Réservation possible)

Temps de livraison: #global.deliverytimeEstimationSimpleMonths#

PVR: ~~159.00 CHF~~

132.00 CHF

16%

inclus 8,1% USt. , plus

Payer en toute sécurité:

Des clients ont aussi acheté en même temps les produits suivants

Précommande

Global Truss

F14 base plate stage black

PVR 25.50 CHF

22.00 CHF *

Disponible à partir de: 20.08.2026 (Réservation possible)

articles semblables

The F14 truss series by Global Truss is a TÜV approved 4-point system with an external dimension of 10cm. The small footprint of the truss is perfect for shop fitting and constructions with minimal loads. A maximum span of up to 7 meters can be used.

&nbsp.

The F14 truss is built with 20 x 2mm main tubes and 6mm diagonal braces of aluminium, whilst the extra end frame improves the stability of the truss. The truss lengths are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.

#productDetails.itemInformation#	#productDetails.itemValue#
Couleur:	noir
Longueur cm:	100
Poids de l'article:	2,15 Kg

General

Colour black
TÜV certificate Yes
Material Al EN AW-6061 T6

Technical Data

Number of points 4-point
Edge dimension 10 cm
System F14
Type straight
Truss length 100 cm

main pipe

Diameter main pipe 20 mm
Wall thickness main pipe 2 mm

Brace

Diameter Brace 6 mm

Hardware

Dimensions (L/W/H) 1000 x 100 x 100 mm
Weight 2,00 kg
