EDX-1 MK2 DMX Dimmer Pack
95.90 CHF *
deliverable
Description
Technical data
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

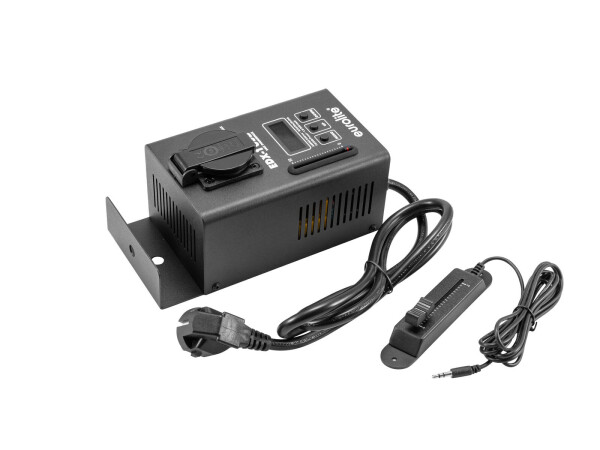

Productinformation in detail The EDX-1 DMX USB is a compact 1-channel dimmer to control the brightness of spotlights on stage or in clubs. It can be controlled via DMX signal from a light console and supports QuickDMX for wireless control. All menu settings can be made via the built-in control panel with LED display. The housing has threads for fixing the unit to a truss.
1-channel DMX dimmer pack with QuickDMX port
- Selectable dimmer or switch pack operating mode
- Control via QuickDMX via USB (optional); stand-alone; DMX; wired remote control; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- 4 digit 7-segment LED display
- For application areas such as: Trade fair and shop fitting; theater; Rental; video and photography
- Silent operation
- Application possibility: Wall mounting
Package contents
- 1 x device, 1 x user manual, 1 x remote control
| Power supply: | 230 V AC, 50 Hz |
| Output power: | Max. 2300 W |
| Output current: | Max. 10 A |
| Power connection: | Fixed power supply cord with safety plug |
| Power output: | 1 x Safety contact (F), hinged lid mounting version |
| DMX channels: | 1 |
| DMX input: | 3-pin XLR (M) mounting version USB, type A |
| DMX output: | 3-pin XLR (F) mounting version |
| Control: | QuickDMX via USB (optional); stand-alone; DMX; wired remote control; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Control channels: | 1 |
| Display type: | 4 digit 7-segment LED display |
| Color: | Black |
| Dimensions: | Width: 18,2 cm Depth: 9,2 cm Height: 6,5 cm |
| Weight: | 1,56 kg |
| Noise classification: | Class 0 (no noise at all) |
Technical data
| Power supply: | 230 V AC, 50 Hz |
| Output power: | Max. 2300 W |
| Output current: | Max. 10 A |
| Power connection: | Fixed power supply cord with safety plug |
| Power output: | 1 x Safety contact (F), hinged lid mounting version |
| DMX channels: | 1 |
| DMX input: | 3-pin XLR (M) mounting version USB, type A |
| DMX output: | 3-pin XLR (F) mounting version |
| Control: | QuickDMX via USB (optional); stand-alone; DMX; wired remote control; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Control channels: | 1 |
| Display type: | 4 digits 7-segment LED display |
| Color: | Black |
| Dimensions: | Width: 18,2 cm Depth: 9,2 cm Height: 6,5 cm |
| Weight: | 1,56 kg |
