Blind plate for DXT mounting plate
9.25 CHF *
deliverable
Description
Technical data
Accessories
Others also bought:
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

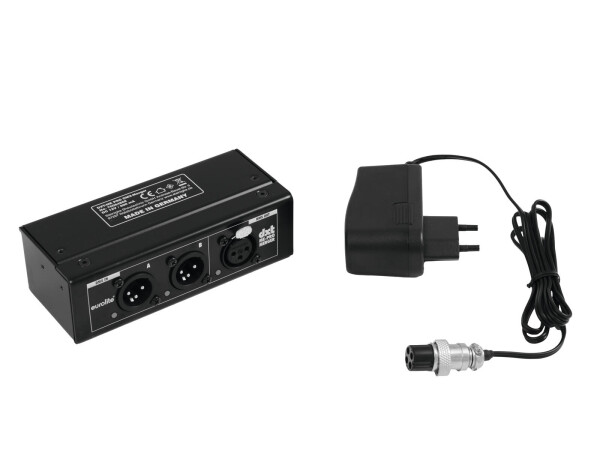

Productinformation in detailPRO DMX merger to combine 2 DMX signals into 1
- Pro DMX merger with 2 DMX inputs and 1 DMX output
- Enables two separate consoles to control one DMX system
- DMX modes: LTP, HTP, merge or backup
- Input B can be set to a start address (offset)
- LED indicator for valid DMX signals
- Selectable output frequency 22 Hz/44 Hz
- Built with NEUTRIK connector
- Made in Germany
- For application areas such as: Stage
| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 1 A |
| Power consumption: | 1 W |
| Power connection: | Mains input via 4-pin screw plug connector (M) mounting version power supply cord with AC adapter (provided) |
| DMX input: | 2 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Use of brands: | Built with NEUTRIK connector |
| Dimensions: | Width: 13 cm Depth: 7 cm Height: 4,1 cm |
| Weight: | 500 g |
Technical data
| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 1 A |
| Power consumption: | 1 W |
| Power connection: | Mains input via 4-pin screw plug connector (M) mounting version power supply cord with AC adapter (provided) |
| DMX input: | 2 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Use of brands: | Built with NEUTRIK connector |
| Dimensions: | Width: 13 cm Depth: 7 cm Height: 4,1 cm |
| Weight: | 500 g |
