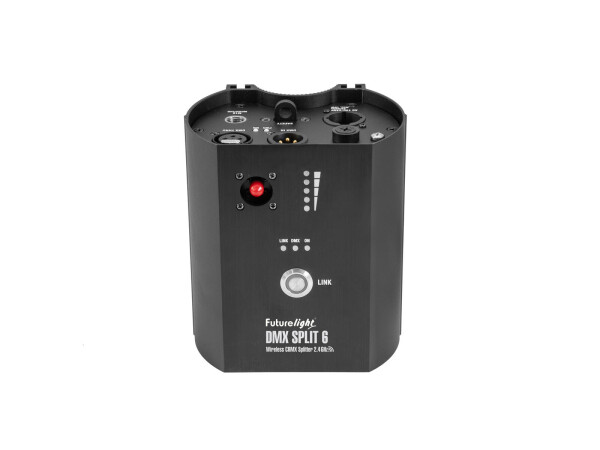

Productinformation in detail6-fold splitter and wireless DMX receiver (2.4 GHz) for truss and wall mounting
- Control via DMX; CRMX by LumenRadio; W-DMX by wireless solution
- DMX splitter for splitting one DMX input signal to 6 DMX outputs
- Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
- Input and outputs galvanically isolated
- Ultra-low latency
- 2.4 GHz license-free worldwide
- Can transmit up to 512 DMX channels
- With Holder for wall mounting
- Operating range up to 500m with line-of-sight
- Each DMX output with active signal processing
- Up to 10 transmitters can be operated in parallel without interference
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x antenna, 1 x mounting bracket, 2 x strap, 1 x declaration of conformity
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 10 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Fuse: | 5 x 20 mm, F 1 A Fuse replaceable |
| DMX channels: | Output 512 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version 6 x 3-pin XLR (F) mounting version Separate (galvanic) with active signal processing |
| Control: | DMX; CRMX by LumenRadio; W-DMX by wireless solution |
| Range: | Range up to 500m with line-of-sight |
| Frequency band: | 2.4 GHz |
| Parallel mode: | Max. 10 transmitter |
| Antenna gain: | 5 dBi |
| Latency: | < 5 ms |
| Modulation: | GFSK |
| Housing color: | Black |
| Attachment system: | M10 thread Holder for wall mounting |
| Status LED: | DMX, pairing, power, level meter |
| Dimensions: | Length: 13,7 cm Width: 12,2 cm Height: 11,2 cm |
| Weight: | 1,20 kg |
Technical data
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 10 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Fuse: | 5 x 20 mm, F 1 A fuse replaceable |
| DMX channels: | Output 512 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version 6 x 3-pin XLR (F) mounting version separate (galvanic) with active signal processing |
| Control: | DMX; CRMX by LumenRadio; W-DMX by wireless solution |
| Range: | Range up to 500m with line-of-sight |
| Frequency band: | 2.4 GHz |
| Parallel mode: | Max. 10 transmitter |
| Antenna gain: | 5 dBi |
| Latency: | < 5 ms |
| Modulation: | GFSK |
| Housing color: | Black |
| Attachment system: | M10 thread Holder for wall mounting |
| Status LED: | DMX, pairing, power, level meter |
| Dimensions: | Length: 13,7 cm Width: 12,2 cm Height: 11,2 cm |
| Weight: | 1,20 kg |
