DMX cable XLR 3pin 3m bk
9.45 CHF *
disponible
Description
Merkmale
Caractéristiques techniques
Video
Accessoires
Articles alternatifs
Des clients ont aussi acheté en même temps les produits suivants
articles semblables
Variations
Alle Variationen zu diesem ArtikelDescription

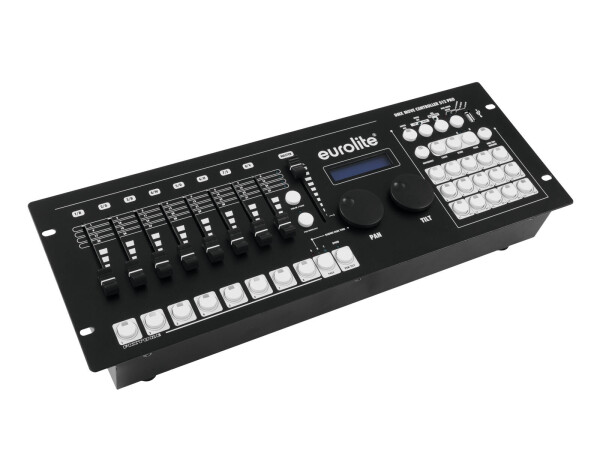

Artikelinfos im DetailConsole with motorized faders, color & motion effects (24 devices/34 channels)
- DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
- 512 DMX channels can be assigned and inverted as desired to 34 control channels (softpatch)
- For 24 fixtures with max. 34 control channels each
- USB port for storing program data
- Quick programming thanks to 9 integrated movement patterns and 6 color effects (pan/tilt position, fade time and running time adjustable)
- Several movement patterns and color effects can be used simultaneously
- Manual, time-controlled or sound-controlled chase running mode
- 3 DMX fixture levels can be controlled
- 8 motorized DMX channel faders for user-friendly control
- The motor faders provide a precise overview of the parameters when switching the individual banks, chases and scenes
- 2 jog wheels for pan/tilt
- Master fader for color and dimmer channels
- Blackout function
- Color-illuminated buttons provide easy orientation
- Programmable 30 scenes/chases each with 485 cues distributed over 2 page(s )
- Can transmit up to 512 DMX channels
- Control via DMX; RDM
- Firmware can be updated
- (19") 48.3 cm rack installation 4 U
- Desktop console housing
- For application areas such as: Clubs/dancing school; Stage; mobile djs / entertainer
- Silent operation
Package contents
- 1 x controller, 1 x user manual, 1 x power cord
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 20 W |
| IP classification: | IP20 |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Programs: | Programmable 30 scenes/chases each with 485 cues distributed over 2 page(s ) |
| DMX channels: | Output 512 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; RDM |
| Housing color: | Black |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Typ A |
| Color: | Black |
| PC connect: | , firmware can be updated |
| Housing design: | (19") 48.3 cm rack installation 4 U Desktop console housing |
| Dimensions: | Width: 48,3 cm Depth: 17 cm Height: 8,9 cm |
| Weight: | 3,82 kg |
| Noise classification: | Class 0 (no noise at all) |
Merkmale
| #productDetails.itemInformation# | #productDetails.itemValue# |
|---|---|
| Typ: | DMX |
| Poids de l'article: | 4,40 Kg |
Caractéristiques techniques
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 20 W |
| IP classification: | IP20 |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Programs: | Programmable 30 Sequences Each with 485 Scenes |
| DMX channels: | Output 512 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; RDM |
| Housing color: | Black |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Typ A |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation 4 U Desktop console housing |
| Dimensions: | Width: 48,3 cm Depth: 17 cm Height: 8,9 cm |
| Weight: | 3,82 kg |
