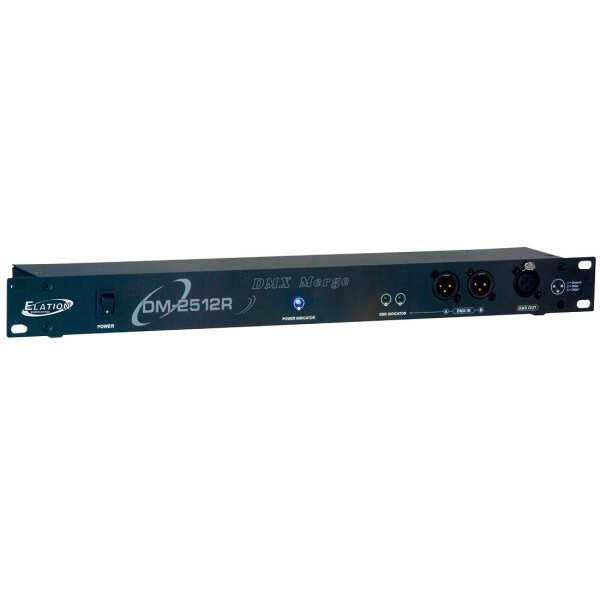

DM-2512R - DMX Merger

- Merges two DMX Lines into one
- Split address adjustable via dipswitches
- Merge, HTP or Back-up mode
- Switches Ports on DMX loss automatically
- LED indication for DATA
- In/out ports on front and rear
- 1 HE 19” slim design

Specifications
- 19” rack mount, dual universe, DMX signal merger
- 3 selectable function modes- Merge, HTP and Back Up
- Merge: define a DMX-Channel split adress, below this Line A gets merged, above is Line B
- HTP: highest DMX Value is valid
- Back Up: Priority on Line A, if signal is lost or unstable automatic switchover to Line B and back.
- DMX Split Adress via 10 position dip switches on rear
- Two (A&B), 3-pin XLR Inputs on front and rear panel
- Single, 3-pin XLR Outputs on front and rear panel
- DMX signal, LED indicators for DMX Inputs
- Power switch and indicator LED
- 9VDC, 1000mA minimum power supply (Included)
- Dimensions: 482 x 73 x 44mm
- Weight: 1.15 kg
