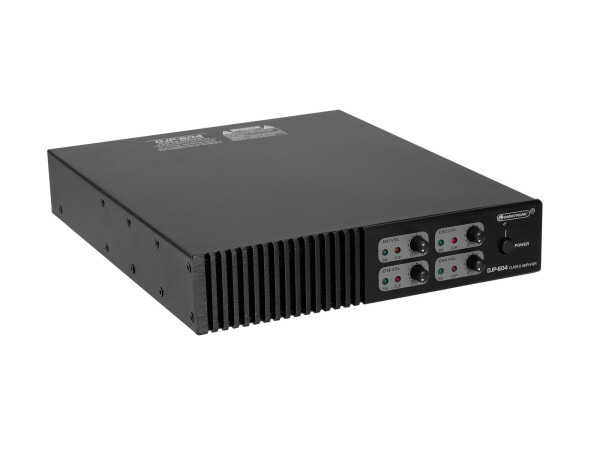

Artikelinfos im Detail4-channel class D amplifier in 9.5" housing, 4 x 150 W / 4 ohms, 4 x 80 W / 8 ohms
- Extremely low weight and height due to integrated switch mode power supply
- Level control per channel
- Inputs linkable for flexible configuration
- Rugged steel chassis with aluminum front panel
- Desktop console housing
- (19") 48.3 cm rack installation possible
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Package contents
- 1 x user manual, 1 x amplifier, 4 x foot, 6 x angle, 8 x screw, 1 x power cord
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 185 W 1/8 power |
| Output power: | 4 x 150 W RMS (4 ohms) 4 x 80 W RMS (8 ohms) |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20,000 Hz |
| S/N ratio: | >105 dB |
| Impedance: | Input: 20 kOhm , bal. Input: 10 kOhm , unbal. |
| Housing color: | Black |
| Circuitry: | Class D |
| Slew rate: | 20 V/µs |
| Damping factor: | >300 |
| Control elements: | Power switch, level control per channel |
| Controls: | Softstart; short-circuit; overheat; overload; VHF; DC voltage |
| Status LED: | Power, signal, clip |
| Connections: | Input: line via 4 x screw plug-in terminal Output: speaker via 4 x screw plug-in terminal |
| Material: | Metal |
| Housing design: | Desktop console housing (19") 48.3 cm rack installation possible |
| Dimensions: | Width: 26,5 cm Depth: 21,4 cm Height: 4,4 cm |
| Weight: | 2,46 kg |
Caractéristiques techniques
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 185 W 1/8 power |
| Output power: | 4 x 150 W RMS (4 ohms) 4 x 80 W RMS (8 ohms) |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20,000 Hz |
| S/N ratio: | >105 dB |
| Impedance: | Input: 20 kOhm , bal. Input: 10 kOhm , unbal. |
| Housing color: | Black |
| Circuitry: | Class D |
| Slew rate: | 20 V/µs |
| Damping factor: | >300 |
| Control elements: | Power switch, level control per channel |
| Controls: | Softstart; short-circuit; overheat; overload; VHF; DC voltage |
| Status LED: | Power, signal, clip |
| Connections: | Input: line via 4 x screw plug-in terminal Output: speaker via 4 x screw plug-in terminal |
| Material: | Metal |
| Housing design: | Desktop console housing (19") 48.3 cm rack installation possible |
| Dimensions: | Width: 26,5 cm Depth: 21,4 cm Height: 4,4 cm |
| Weight: | 2,46 kg |
