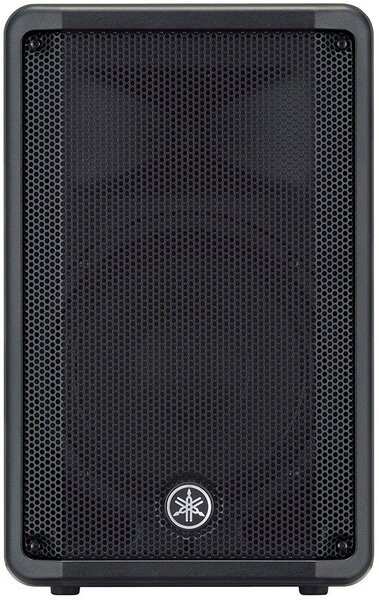

DBR15

Die DBR15 erreicht mit 132 dB den grössten Schalldruck innerhalb der DBR-Modellreihe und reicht in tiefere Frequenzbereiche hinab als die beiden anderen Boxen. Sie ist bei FOH-Liveanwendungen oder DJ-Sets, bei denen es auf Leistung und kraftvolle Bässe ankommt, zu herausragenden Leistungen imstande.

General specifications

- Speaker type 2-way, Bi-amp powered speaker, Bass-reflex type
- Frequency range (-10dB) 50Hz - 20kHz
- Nominal coverage H 90°
- V 60°
- Components LF Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite
- HF Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
- Crossover 2.1kHz: FIR-X tuning (linear phase FIR filter)
- Output power Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
- Maximum output level (1m; on axis) 132dB SPL
- I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
- Heat dissipation Fan cooling, 4 speeds
- Power requirements 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
- Power consumption 74W(1/8 Power Consumption), 18W(Idle)
- Cabinet material Plastic
- Finish Black
- Handle Side x 2
- Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
- Pole socket 35mm (Bottom x 1)
- Dimensions W 455mm (17.9")
- H 700mm (27.6")
- D 378mm (14.9")
- Net weight 19.3 kg (42.6 lbs)
- Accessories BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)

- Garantie: 2 Jahre
