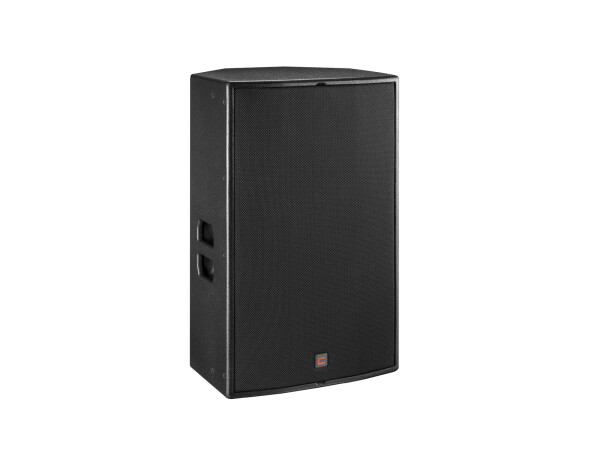

Artikelinfos im DetailPerfectly built speaker
- Horn 90 degree rotatable for horizontal or vertical use
- With rigging points
- CELTO ACOUSTIQUE driver
- Built with NEUTRIK connector
- For application areas such as: Concerts/FoH's; Clubs/dancing school; Installation; mobile use; Stage; theater; sports centres/gyms; multi-purpose hall
- Dual flange
Package contents
- 1 x top
| Power: | 800W AES Program: 1600W Peak: 3400W |
| Frequency range: | 48 - 22000 Hz |
| Sensitivity: | 98 dB |
| Max. SPL: | 133 dB |
| Dispersion angle: | 80° x 50° rotatable horn |
| Impedance: | 8 ohms |
| Attachment system: | Dual flange: Ø 35mm (0°/10°) |
| Flying points: | 15 x M8 thread |
| Control elements: | Mode switch (1+1- / 2+2-) |
| Connections: | 2 x 4-pol SpeakON mounting version (F) |
| Crossover frequency: | 1400 Hz |
| Speaker: | Woofer 15" Basket material: aluminum Voice coil lows 3,5" Annular compression driver 1" Diaphragmmaterial: PEEK (H.T. polymer) Voice coil annular 1,75" |
| Type of speaker: | Compact cabinet speaker |
| Type of construction: | Vented |
| Use of brands: | CELTO ACOUSTIQUE driver Built with NEUTRIK connector |
| Material: | Birch multiplex |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 44,5 cm Depth: 41,4 cm Height: 71,0 cm |
| Weight: | 29,85 kg |
Caractéristiques techniques
| Power: | Peak: 3400W Program: 1600W 800W AES |
| Frequency range: | 48 - 22000 Hz |
| Sensitivity: | 98 dB |
| Max. SPL: | 133 dB |
| Dispersion angle: | 80° x 50° rotatable horn |
| Impedance: | 8 ohms |
| Attachment system: | Dual flange: Ø 35mm (0°/10°) |
| Flying points: | 15 x M8 thread |
| Control elements: | Mode switch (1+1- / 2+2-) |
| Connections: | 2 x 4-pol SpeakON mounting version (F) |
| Crossover frequency: | Passive 1400 Hz |
| Speaker: | Woofer 15" Basket material: aluminum Voice coil lows 3,5" Annular compression driver 1" Voice coil annular 1,75" Diaphragmmaterial: PEEK (H.T. polymer) |
| Type of speaker: | Compact cabinet speaker |
| Type of construction: | Vented |
| Use of brands: | CELTO ACOUSTIQUE driver Built with NEUTRIK connector |
| Material: | Birch multiplex |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 44,5 cm Depth: 41,4 cm Height: 71,0 cm |
| Weight: | 29,85 kg |
