Description
Caractéristiques techniques
Variations
Alle Variationen zu diesem ArtikelDescription

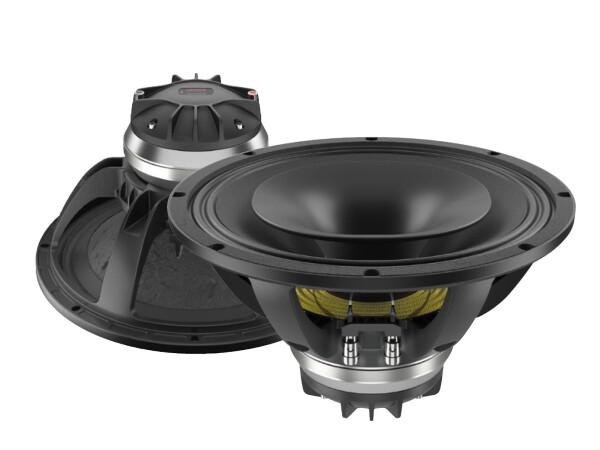

Artikelinfos im Detail350/80 W AES, 8 ohms LF/HF, 99,5/105,5 dB, 45-3500 Hz/600-18000 Hz
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x speaker
| Power: | Program: 700W LF Rated: 80W AES HF Rated: 350W AES LF Program: 160W HF |
| Frequency range: | 45 - 3500 Hz LF 600 - 18000 Hz HF |
| Sensitivity: | 99,5 dB LF; 105,5 dB HF |
| Impedance: | 8 ohms LF; 8 ohms HF |
| Speaker: | Woofer 12" with shared neodymium magnet with dual demodulating rings Basket material: aluminum Voice coil lows 3" Diaphragmmaterial: Titanium Compression tweeter highs 1,4" Voice coil compression tweeter highs 3" |
| Weight: | 4,80 kg |
Caractéristiques techniques
| Power: | Program: 700W LF Rated: 80W AES HF Rated: 350W AES LF Program: 160W HF |
| Frequency range: | 45 - 3500 Hz LF 600 - 18000 Hz HF |
| Sensitivity: | 99,5 dB LF; 105,5 dB HF |
| Impedance: | 8 ohms LF; 8 ohms HF |
| Speaker: | Woofer (12") approx. 30 cm with shared neodymium magnet with dual demodulating rings Basket material: aluminum Voice coil lows (3") approx. 8 cm Diaphragmmaterial: Titanium Compression tweeter highs (1,4") approx. 3,6 cm Voice coil compression tweeter highs (3") approx. 8 cm |
| Weight: | 4,90 kg |
