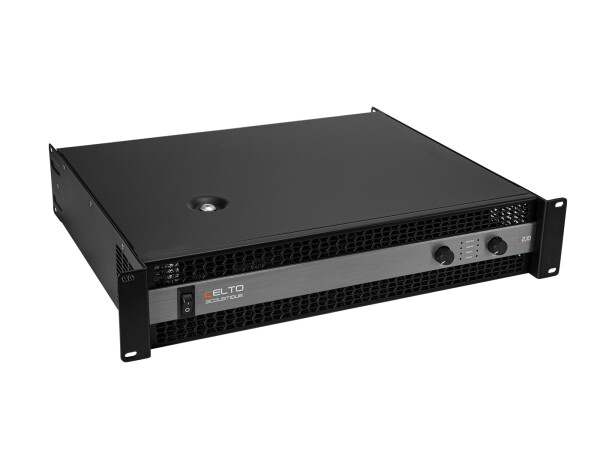

Artikelinfos im DetailClass H touring amplifier with SMPS, 2 x 1100 W RMS (4 ohms), 2 x 750 W RMS (8 ohms)
- (19") 48.3 cm rack installation 2 U
- Highly efficient Air flow from front to rear
- The device is cooled by temperature-controlled fan
Package contents
- 1 x amplifier, 1 x power cord, 4 x foot
| Power supply: | 230 V AC, 50 Hz |
| Protection class: | Protection class I |
| Output power: | 2 x 1100 W RMS (4 ohms); 2 x 750 W RMS (8 ohms); 1 x 2200 W RMS bridged (8 ohms) |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Device fuse: | 15 A Fuse resettable |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >108 dB |
| THD: | <0,1 % at 1 kHz |
| Cooling: | 3 x temperature-controlled fan , Air flow from front to rear |
| Impedance: | Input: 20 kOhm |
| Gain: | 40 dB |
| Circuitry: | Class H |
| Slew rate: | 20 V/µs |
| Damping factor: | >500 |
| Crosstalk: | >65 dB |
| Control elements: | Power switch, level control per channel, mode switch (stereo/parallel/bridged), groundlift selector |
| Controls: | Softstart; short-circuit; Overvoltage; overload; current limiting; DC voltage; overheat |
| Status LED: | Power, signal, limit, protect |
| Connections: | Input: line via 2 x 3-pin XLR (F) mounting version Output: line via 2 x 3-pin XLR (M) mounting version Output: speaker via 2 x 4-pol SpeakON mounting version (F) Output: 4 x screw plug-in terminal |
| Input sensitivity: | 0,775 V |
| Color: | Black, matte, painted |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm Depth: 38,8 cm Height: 8,8 cm |
| Weight: | 15,90 kg |
