ALT-105 Audio Link Module WAMS-05

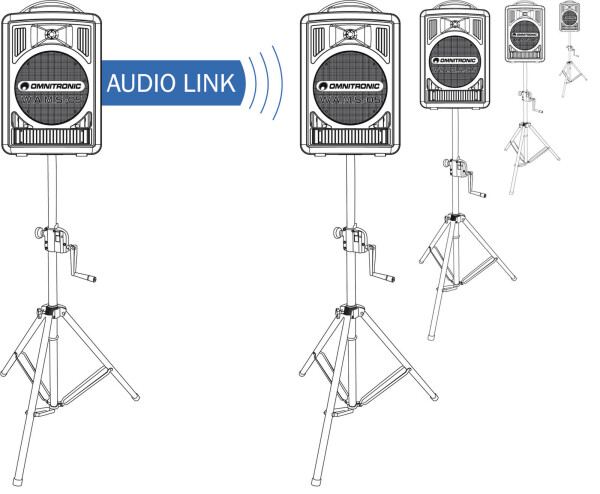

The multifrequency transmitting ALT-105 serves as a replacement part or as an extension for the PA system W.A.M.S.-05. The unit operates in the UHF range of 863.100 - 864.900 MHz. The frequency range is divided into 16 channels, which can be selected as desired. The transmitter module allows for wireless transmission of the audio signal of the speaker system to receiving units RM-105 of further W.A.M.S.-05 systems (audio link mode). The unit is tuned to the frequencies of the receiver module.

Multifrequency transmitting unit for WAMS-05

• Applicable for wireless audio transmission to receiving units of further WAMS-05 systems (audio link mode) or as a replacement
• Operation in the low-interference UHF band (863-865 MHz) with 16 frequencies selectable
• LEDs for carrier and audio signal
• LCD display
• UHF 863 - 865 MHz License-free and approved in Europe
• Operating range up to 30m

Type:	Audio transmission
Power supply:	12 V DC 150 mA
Frequency range:	70 - 16000 Hz
Range:	Range up to 30m
Frequency band:	UHF 863 - 865 MHz; UHF
Diversity:	True diversity
RF power output:	10 mW
Display type:	LCD display
Display:	Chanal , frequency
Control elements:	Level control
Input sensitivity:	130 mV
Dimensions:	Width: 8,8 cm Depth: 4,3 cm Height: 11 cm
Weight:	230 g
