Artikelinfos im DetailBattery-powered wireless DMX receiver 2.4 GHz
- Compact 3-pin XLR adapter (female) with built-in antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- 32-bit ARM processor for delay-free transmission
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Group mode
- Multicolored LED indicator
- Battery operation up to 20h
- Control via QuickDMX; plug and play
- Operating range up to 400m
- Cordless, flexible and versatile
- Up to 6 transmitters can be operated in parallel without interference
Package contents

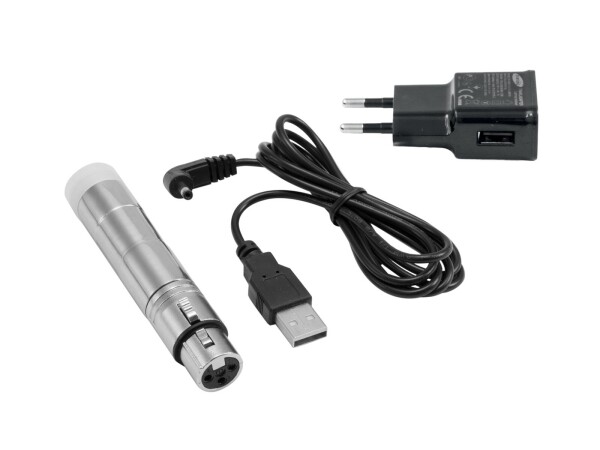

- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x uSB cable
| Power supply: | 5 V DC |
| Pin configuration: | Inside + / outside - |
| IP classification: | IP20 |
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided) |
| Battery pack type: | 1 x lithium ion 3,7 V, 450 mAh, 1,665 Wh |
| Battery pack: | Battery operation up to 20h |
| DMX output: | 3-pin XLR (F) |
| Control: | QuickDMX; plug and play |
| Range: | Range up to 400m |
| Carrier frequency: | 2,4 GHz |
| Parallel mode: | Max. 6 transmitter |
| Modulation: | GFSK |
| Color: | Silver |
| Dimensions: | Length: 9,50 cm Diameter: Ø 1,8 cm |
| Weight: | 140 g |
Caractéristiques techniques
| Power supply: | 5 V DC |
| Pin configuration: | Inside + outside - |
| IP classification: | IP20 |
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided) |
| Battery pack type: | 1 x lithium ion 3,7 V, 380 mAh, 1,4 Wh |
| Battery pack: | Battery operation up to 20h |
| DMX output: | 3-pin XLR (F) |
| Control: | QuickDMX; plug and play |
| Carrier frequency: | 2,4 GHz |
| Modulation: | GFSK |
| Parallel mode: | Max. 6 transmitter |
| Range: | Range up to 400m |
| Color: | Silver |
| Dimensions: | Length: 9,50 cm Diameter: Ø 1,8 cm |
| Weight: | 140 g |
