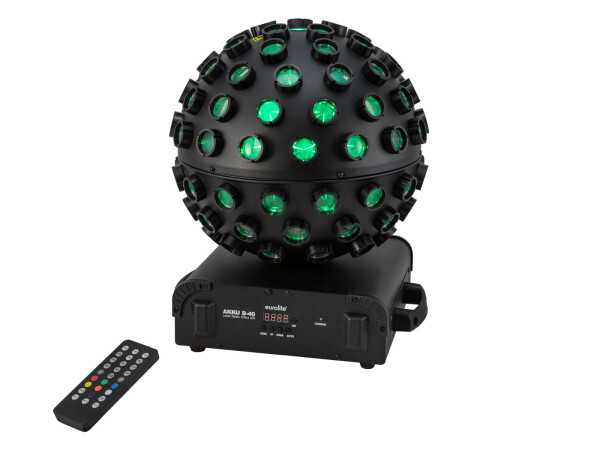

Productinformation in detailBattery-powered LED beam effect with RGBW color mixing, RG laser, AirW wireless system (2.4 GHz) and RF remote control
- Cordless, flexible and versatile
- Integrated AirW radio transceiver for wireless master/slave operation
- Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
- 2 laser diodes project hundreds of red and green laser beams
- 5 powerful LEDs 8 W SMD 4in1 QCL RGBW
3 segments controlled separately - Multi beam effect; laser; strobe effect
- 7 integrated show programs
- Dimmer electronic; color selection adjustable; program selection manual; Energy-saving mode adjustable; program speed adjustable; Rotation speed adjustable; Rotation direction adjustable
- Control via stand-alone; DMX; AirW; sound to light via microphone; master/slave function; wireless remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- 3 buttons on the remote control for saving your own settings
- DMX fail mode (blackout; hold; auto; full on)
- Battery operation up to 11h depending on program used
- Integrated automatic charging of the battery
- Charge status indicator
- Highly efficient air flow from front to rear
- The device is cooled by low-noise cooling fan at the base; cooling fan at the Head
- Flicker-free
- Monochrome 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; wedding/gala/events; mobile use; mobile djs / entertainer
- Very quiet working noise
- Application possibility: Standing; suspended
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer - With omega bracket
light effect
- AirW: operating range up to 70m with line-of-sight
remote control
- Operating range up to 30m with line-of-sight
Package contents
- 1 x light effect, 1 x power cord, 1 x omega bracket, 1 x user manual, 1 x remote control, 4 x screw, 4 x washer, 1 x declaration of conformity, 1 x battery
| Power supply: | 100-240 V AC, 50/60 Hz |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) Battery/battery pack built-in |
| Cable construction: | 3 x 1,0 mm² H05VV-F |
| Power output: | 1 x IEC connector (F) mounting version Bypass |
| Device fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Battery pack type: | 1 x lithium ion 18,5 V, 13000 mAh, 240,5 Wh |
| Battery pack: | Battery operation up to 11h depending on program used Recharging time 7h |
| LED type: | 5 x 8 W SMD 4in1 QCL RGBW |
| Flash rate: | 1 - 20 Hz |
| Laser class: | 2M |
| Laser color: | R/G |
| Laser module: | Red (R) 100 mW 650nm Green (G) 40 mW 532nm |
| DMX channels: | 3; 10; 22 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version Bypass |
| Cooling: | 1 x low-noise cooling fan at the base, air flow from front to rear 1 x cooling fan at the Head |
| Control: | Stand-alone; DMX; AirW; sound to light via microphone; master/slave function; wireless remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Projection: | Flicker-free |
| DMX fail mode: | Blackout; hold; auto; full on |
| Housing color: | Black matte |
| Attachment system: | Omega bracket |
| Display type: | Monochrome 4 digit 7-segment LED display |
| Display: | Charge status indicator |
| Status LED: | Charge status indicator |
| USB port: | 1 x type A |
| Material: | Metal, painted |
| Dimensions: | Length: 32 cm Width: 26 cm Height: 39 cm |
| Weight: | 6,90 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Light effect | |
| Range: | AirW: range up to 70m with line-of-sight |
| Carrier frequency: | 2,4 GHz |
| Omega bracket | |
| Material thickness: | 3 mm |
| Remote control | |
| Battery: | 1 x 12 V 23AE alkaline manganese built-in |
| Range: | Range up to 30m with line-of-sight |
| Carrier frequency: | 433,92 MHz |
Technical data
| Power supply: | 100-240 V AC, 50/60 Hz |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) Battery/battery pack built-in |
| Cable construction: | 3 x 1,0 mm² H05VV-F |
| Power output: | 1 x IEC connector (F) mounting version Bypass |
| Device fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Battery pack type: | 1 x lithium ion 18,5 V, 13000 mAh, 240,5 Wh |
| Battery pack: | Battery operation up to 11h depending on program used Recharging time 7h |
| LED type: | 5 x 8 W SMD 9095 4in1 QCL RGBW |
| Flash rate: | 1 - 20 Hz |
| Laser class: | 2M |
| Laser color: | R/G |
| Laser module: | Red (R) 100 mW 650nm Green (G) 40 mW 532nm |
| DMX channels: | 3; 10; 22 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version Bypass |
| Cooling: | 1 x low-noise cooling fan at the base, air flow from front to rear 1 x cooling fan at the Head |
| Control: | Stand-alone; DMX; AirW; sound to light via microphone; master/slave function; wireless remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Projection: | Flicker-free |
| DMX fail mode: | Blackout; hold; auto; full on |
| Housing color: | Black matte |
| Attachment system: | Omega bracket |
| Display type: | Monochrome 4 digit 7-segment LED display |
| Display: | Charge status indicator |
| Status LED: | Charge status indicator |
| USB port: | 1 x type A |
| Material: | Metal, painted |
| Dimensions: | Length: 32 cm Width: 26 cm Height: 39 cm |
| Weight: | 6,90 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Light effect | |
| Range: | AirW: range up to 70m with line-of-sight |
| Carrier frequency: | 2,4 GHz |
| Omega bracket | |
| Material thickness: | 3 mm |
| Remote control | |
| Battery: | 1 x 12 V 23AE alkaline manganese built-in |
| Range: | Range up to 30m with line-of-sight |
| Carrier frequency: | 433,92 MHz |
