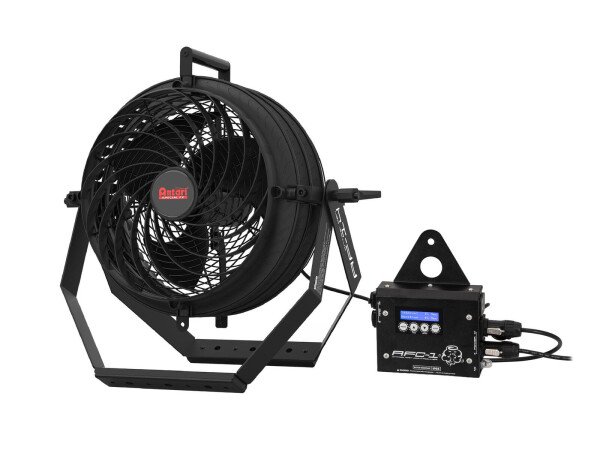

AF-14 IP Effect Fan

The Antari AF-14 is a high-velocity fan (4500 m³/h) engineered for professional applications, combining power, precision and long-term durability. Its IP-55 rated, splash-resistant construction makes it a reliable choice for demanding environments where moisture, dust or outdoor conditions are a concern - a major advantage for touring, stage productions and permanent installations.Featuring a unique swirl-shaped front cover, the AF-14 maintains a focused airflow while reducing turbulence and noise. The specially designed aerodynamic blades deliver optimal air distribution with minimal sound, ensuring smooth and quiet performance ideal for stage, studio, and installation use.Built with robust materials for consistent reliability, the AF-14 operates with a simple plug-and-run setup and comes with the AFC-1 control box for advanced control via DMX, W-DMX or wireless remote. Built for professionals, the control box features variable speed adjustment and a built-in timer function, allowing precise control over airflow duration and intensity.Whether for fog dispersion or wind effects, the AF-14 provides efficient, quiet and stable airflow that meets the needs of professional environments.

Weather-proof wind machine with DMX/RDM and timer, 4500 m³/h

• Great effect when used e.g. with fog, snow and bubble machines
• Air discharge angle adjustable
• Adjustable timer with interval, duration and wind volume
• Can be operated in 1 CH mode
• Control via stand-alone; timer; DMX; RDM; wireless remote control (optional); W-DMX by wireless solution (optional)
• With mounting bracket
• For application areas such as: Mobile djs / entertainer
• Very quiet working noise

Scope of delivery

• 1 x cooling fan
• 1 x controller
• 1 x power cord
• 1 x user manual
• 2 x mounting bracket
• 2 x knurled screw
• 6 x washer

Power supply:	230 V AC, 50 Hz
Power consumption:	145 W
IP classification:	IP55
Power connection:	Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided)
Speed:	1650 RPM
Maximum airflow:	4500 m³/h
DMX channels:	1
DMX input:	1 x 5-pin XLR (M) mounting version IP
DMX output:	1 x 5-pin XLR (F) mounting version IP
Control:	Stand-alone; timer; DMX; RDM; wireless remote control (optional); W-DMX by wireless solution (optional)
Housing color:	Black
Attachment system:	2x mounting bracket
Weight:	14.55 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Cooling fan
Dimensions:	Length: 43.2 cm Width: 65.6 cm Height: 62.3 cm
Controller
Dimensions:	Length: 26.6 cm Width: 16.3 cm Height: 5.3 cm
