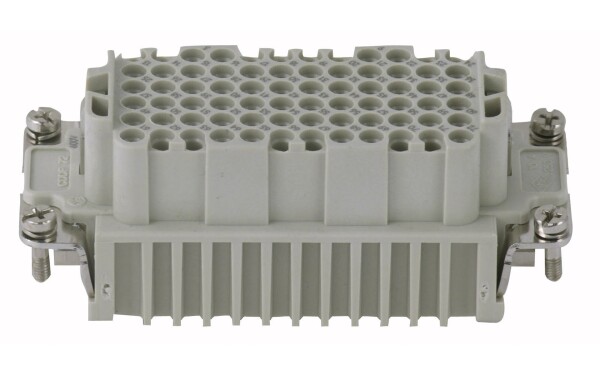

72p. Audio Insert Female Without Contactpins

Product description
Model Female insert
Version Crimp connections
Series CDD
Product type For female contacts 10A
Family CLASS inserts
Size Size ""77.27""
N. of poles 72 poles + PE
Technical data
Current 10 A
Voltage 250 V
Rated impulse withstand voltage 4 kV
Pollution degree 2
Operating temperature range (min, max) -50°C … +70°C
Mating cycles ? 200
IP degree of protection IP20 without enclosure, IP65/IP66/IP68/IP69 with enclosure
PE connection type Screw
PE terminal stripping length 7 mm
PE wire cross-section 0,14 - 4 mm2; AWG 20 - 12
Tightening torque for PE connection M4: 1,2 Nm, 10,6 lb,in (Ph2 or 1,0x5,5mm )
Further technical details
Characteristics according to EN 61984 10A 250V 4kV 2
Insulation resistance ? 1 G?
Contact resistance ? 3 m?
Rated voltage according to UL/CSA 600V
UL 94 flammability rating V-0
Tightening torque for fixing screws M3: 0.5 Nm; 4.4 lb.in (Ph1 or 0.8x4 mm)
Weight 62,50 g
Approvals / Standards
Reference standard EN 61984:2009-06
Quality mark DNV-GL, EAC
Conformity CQC, CE
