55925025 - Pop-Rivet Standard 5.0 x 25.0 mm
RRP 0.07 CHF
0.05 CHF *
deliverable
Description
Technical data
#dzm_niuplus_companion.niu_quick_buy_variations#
All variations to this product.Description

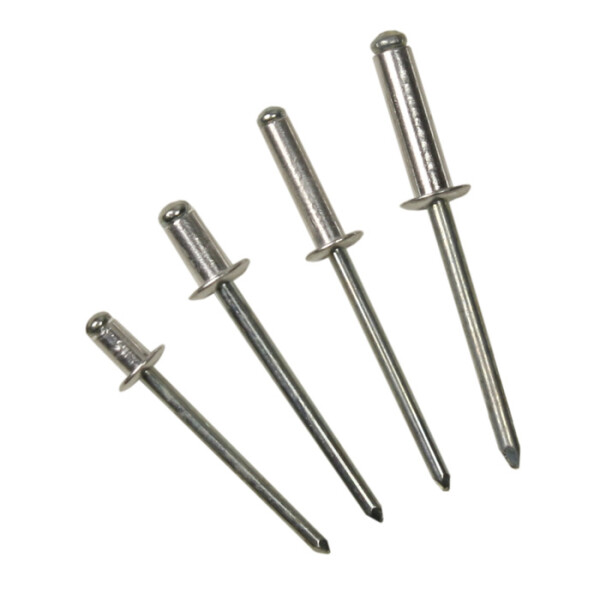

Productinformation in detailBLIND RIVETS FOR SOFT MATERIALS (ALUMINIUM)
This fixing ensures a secure and tight connection in soft materials. Therefore also particularly effective when used with materials such as plastic or wood.
The Bralo for soft materials is a mandrel break blind rivet This rivet is particularly suitable for materials that are soft or brittle, because the mandrel break load is controlled. It provides exceptional clamping force. A 3.5% aluminium-magnesium alloy gives increased tensile and shear forces.
Other rivet versions for special applications and requirements available in the shop.
Technical data
| Product type | Fittings |
| Type | Rivets |
| Rivet diameter | 4.8 mm |
| Rivet length | 21 mm |
| Head diameter | 9.5 mm |
| Head height | 1.4 mm |
| Mandrel diameter | 2.73 mm |
| Clamping width | 14 - 17 mm |
| Load capacity (sheering strain) | 2000 N |
| Tensile load | 2700 N |
| Rivet material | Aluminium |
| Rivet alloy | AIMg 3.5 |
| Mandrel material | Steel |
| Mandrel surface | nature |
| Weight | 0,003 kg |
