Adam Hall Cables

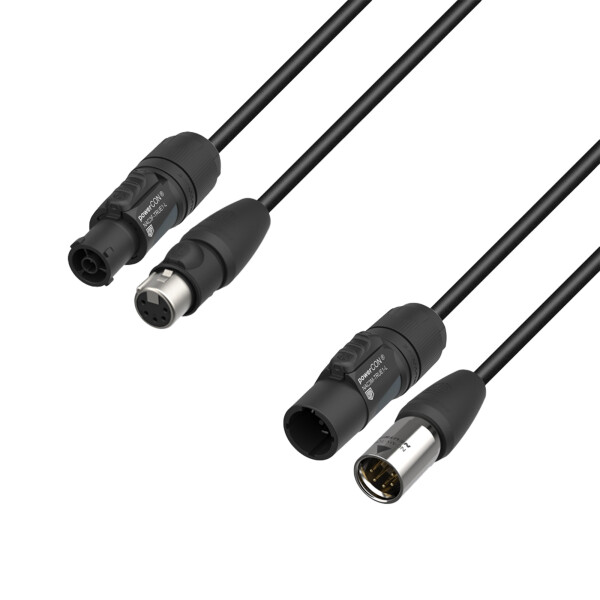

5 STAR H TCON 5D 0300 IP65 - Hybrid Cable | Poer & DMX | Neutrik® XLR 5-pole IP65 x TRUE1® | 3 m

SKU: AH8101PSDP50300NIP65 GTIN: 4049521660429 Category: Combi cable

The Hybrid Cables from our 5 STAR SERIES are manufactured in the EU
Perfectly suited for the parallel supply of devices with power and DMX signals
With original connectors from Neutrik®
XLR 5-pole IP65 Female to XLR 5-pole IP65 Male & TRUE1-TOP®
With a conductor cross-section of 2 x 0.22 mm² DMX cable and 3 x 2.5 mm² mains cable
Includes loose, transparent heat-shrink tubing for labeling the cable
The splice length is 40 cm

deliverable

Delivery time: 6 - 7 Workdays

RRP: ~~126.00 CHF~~

122.00 CHF

3%

incl. 8,1% VAT , plus

pcs.

Pay securely with:

5 STAR H TCON 5D 0300 IP65 - Hybrid Cable | Poer & DMX | Neutrik® XLR 5-pole IP65 x TRUE1® | 3 m

Hybrid Cable for DMX & power supply

Product type	Hybridkabel
Type	Mains/DMX cable
Cable Length	3 m
Splice length	40 cm
Color	Black
Overall diameter	17 mm
Jacket material	PVC
Temperature range	-20 - 70 °C
Weight	0,83 kg

Mains line

Connector 1-A	NAC3FC-W-TOP
Connector 2-A	NAC3MX-W-TOP
Center conductor material	bare copper
Center conductor cross section	2.5 mm²
Number of internal conductors	3
Inner conductor construction	96 x 0.10
Diameter	10 mm
AWG	24

Signal line

Connector 1-B	NC5FX-TOP
Connector 2-B	NC5MX-TOP
Center conductor material 2	bare copper
Center conductor cross section 2	0.22 mm²
Number of inner conductors 2	2
Diameter 2	5 mm
AWG 2	24
Capacitance	85 pF/m
Conductor resistance	120 ohm/km
Surge Impedance	120 ohm/km
