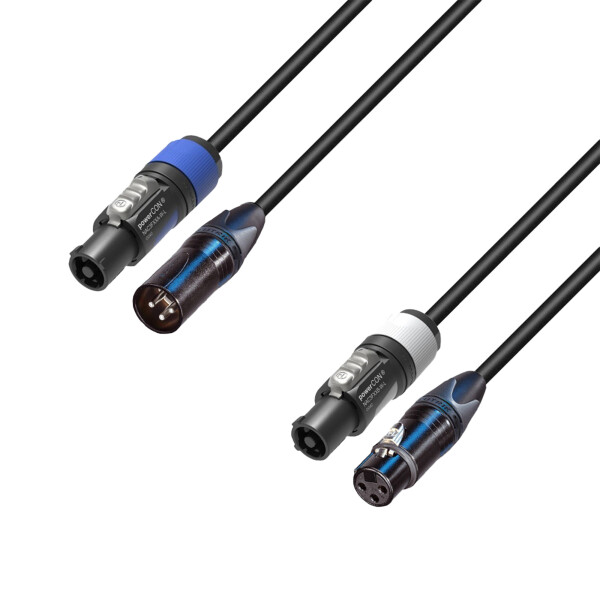

Productinformation in detailFor looping stage wedges (like f.e. LD Systems® MON G3 series) through, we have added the new hybrid cables to our 5 STAR SERIES, which is made in EU. Assembled with original Neutrik powerCON® & 3-pole XLR you have the right connectors on hand.
This product is made for audio applications. For DMX & AES/EBU you can also check the solutions from Adam Hall Cables®
Technical data
General
| Cable length | 10 m |
| Split end length | 40 cm |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 17 mm |
| Cable colour | Black |
Plugs
| Connector type plug 1 | XLR 3-pole female |
| Model name plug 1 | Neutrik NC3FXX-BAG |
| Contact material plug 1 | Silver plated |
| Connector type plug 2 | XLR 3-pole male |
| Model name plug 2 | Neutrik NC3MXX-BAG |
| Contact material plug 2 | Silver plated |
Line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 2 x 0,22 mm² |
| AWG | 24 |
| Capacity/m | 55 pF |
| Conductor impedance/km | 85 Ohm |
| Shield | Spiral copper shielding |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 5 mm |
Mains plug
| Plug type connector 1 | Mains plug indoor power out female & powerCON® |
| Model name connector 1 | Neutrik NAC3FXXB-W-L |
| Plug type connector 2 | Mains plug indoor power in female & powerCON® |
| Model name connector 2 | Neutrik NAC3FXXA-W-L |
Mains line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 3 x 2,5 mm² |
| AWG | 13 |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 10 mm |
Dimensions & weight
| Weight | 3.01 kg |
