Adam Hall Cables

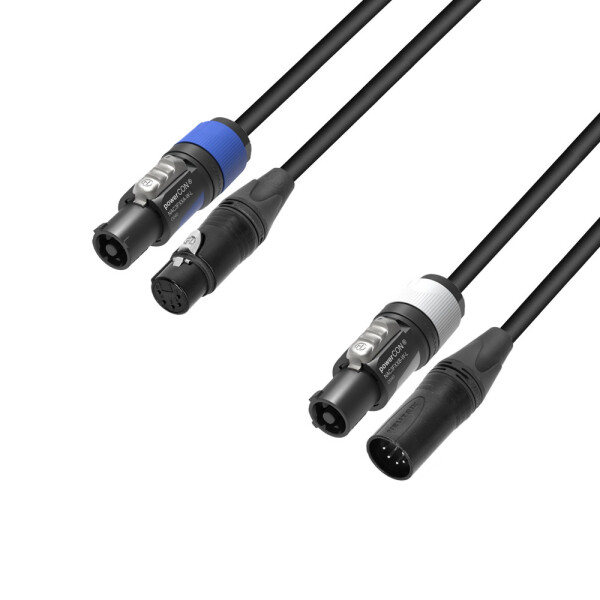

5 STAR H PCON 5D 1000 - Hybrid Cable | Power & DMX | Neutrik® 5-polel XLR x powerCON® | 10 m

SKU: AH8101PSDT51000N GTIN: 4049521692710 Category: Combi cable

The hybrid cables from our 5 STAR SERIES are manufactured in the EU
Perfectly suited for the parallel supply of devices with power and DMX signals
With original connectors from Neutrik®
XLR 5-pole Female to XLR 5-pole Male & powerCON®
With a conductor cross-section of 2 x 0.22 mm² DMX cable and 3 x 2.5 mm² mains cable
Includes loose, transparent heat-shrink tubing for labeling the cable yourself
The splice length is 40 cm

deliverable

Delivery time: 6 - 7 Workdays

RRP: ~~146.00 CHF~~

141.00 CHF

3%

incl. 8,1% VAT , plus

pcs.

Pay securely with:

5 STAR H PCON 5D 1000 - Hybrid Cable | Power & DMX | Neutrik® 5-polel XLR x powerCON® | 10 m

Hybrid Cable for DMX & power supply

Product type	Hybridkabel
Cable Length	10 m
Splice length	40 cm
Color	Black
Overall diameter	17 mm
Jacket material	PVC
Temperature range	-20 - 70 °C
Weight	1,4 kg

Mains line

Connector 1-A	NAC3FCA-1
Connector 2-A	NAC3FCB-1
Center conductor material	bare copper
Center conductor cross section	2.5 mm²
Number of internal conductors	3
Inner conductor construction	96 x 0.10
Diameter	10 mm
AWG	14

Signal line

Connector 1-B	NC5FXX-BAG
Connector 2-B	NC5MXX-BAG
Center conductor material 2	bare copper
Center conductor cross section 2	2.5 mm²
Number of inner conductors 2	3
Diameter 2	5 mm
AWG 2	24
Capacitance	55 pF/m
Conductor resistance	85 ohm/km
Surge Impedance	120 ohm/km
