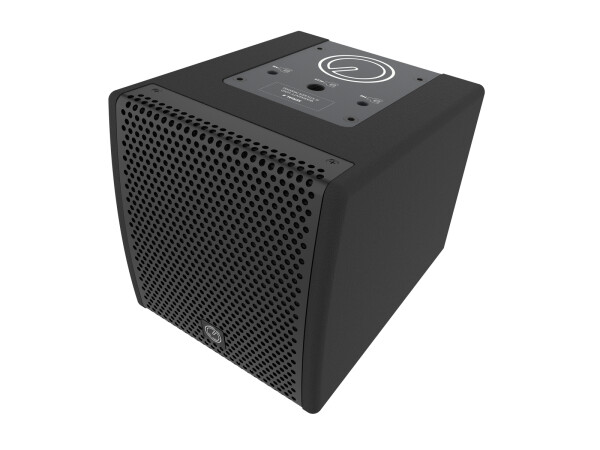

4FW50T 4" Full-range Speaker black

The INTUCAB 4FW50T is a wideband background music speaker for indoor applications where an unobtrusive appearance and mechanical ruggedness must be combined with above-average SPL and pristine sound quality. With 16 ohms of impedance, it is perfectly suited for low-impedance applications with up to 4 speakers in parallel, and the optionally available input transformer kit makes integration with 100V systems easy as well. Catering for the ease of cabling in fixed installations, an additional 5.0mm terminal strip is provided. The mounting options include M6 and M10 mounting points, allowing for suspended mounting, truss mounting and bracket mounting. Available in black and white structural paint finish for further flexibility. For full-range applications, a combination with the INTUCAB 8SM300T Subwoofer is recommended.

4'' background music speaker for indoor installations 20W AES, 16 ohms

• 100V transformer kit option (UTK20 - sold separately)
• For further information about this product, please refer to the Data Sheet under "Downloads"

Package contents

• 1 x top, 1 x user manual, 1 x screw plug-in terminal, 3 x safety eyelet, 1 x adapter

IP classification:	IP20
Power:	Rated: 20W AES Program: 40W
Frequency range:	100 - 15000 Hz
Sensitivity:	84 dB (1W/1m)
Max. SPL:	102,5 dB
Impedance:	16 ohms
Attachment system:	M10 thread 3x M6 thread
Connections:	2 x speaker built-in socket (F) 1 x screw plug-in terminal
Speaker:	Full rage loudspeaker 4"
Type of speaker:	Compact cabinet speaker
Type of construction:	Closed Box
Material:	MDF (Medium-density fiberboard), 12 mm
Color:	Black, textured coating, painted
Dimensions:	Width: 13 cm Depth: 16 cm Height: 13,8 cm
Weight:	1,95 kg
