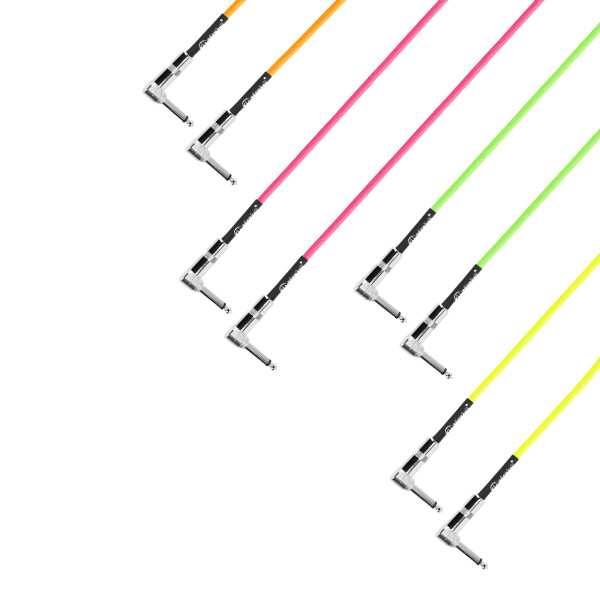

Productinformation in detailPedalboard patch cable with the right look
We at Adam Hall® Cables provide you with great solutions for your pedalboard. Our range of neon patch cables do not only look hot, they also clearly differentiate well for finding the right connections also on stage.
The silver-plated contacts in conjunction with the large conductor cross-section gives your signal the wings that it needs to unfold your sound freely.
Furthermore, the cables come with a heatshrink for protecting the connection against overbending.
Technical data
General
| Cable length | 0.9 m |
| Cable jacket | PVC with braided sheathing |
| Cable diameter | 6.5 mm |
| Cable colour | Multicoloured |
Plugs
| Connector type plug 1 | 6.3 mm Jack TS angled |
| Contact material plug 1 | Silver plated |
| Connector type plug 2 | 6.3 mm Jack TS angled |
| Contact material plug 2 | Silver plated |
Line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 1 x 0,50 mm² |
| Capacity/m | 85 pF |
| Conductor impedance/km | 90 Ohm |
| Shield | Spiral copper shielding |
Environmental
| Ambient temperature | -20 - 70 °C |
Dimensions & weight
| Weight | 364 g |
