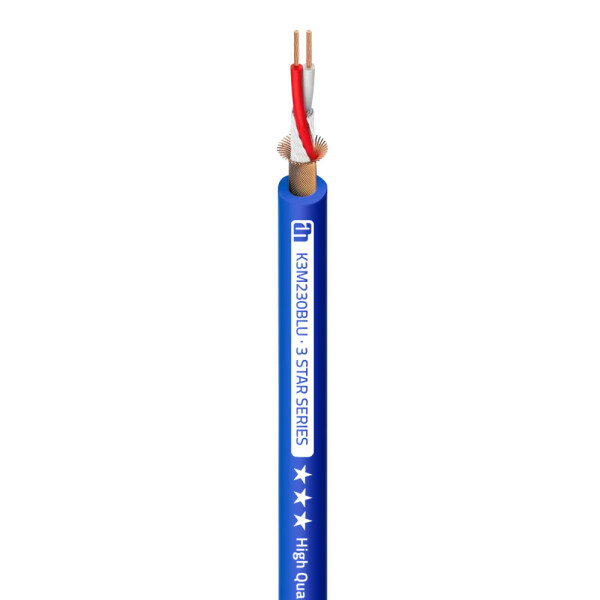

Productinformation in detailThe 3 STAR M 230 is a microphone cable for the balanced transmission of low impedance signals. The cable consists of two twisted, fine-stranded OFC copper conductors (cross-section 0.30 mm²), which ensure efficient unbalance attenuation. The tinned copper braided shield provides efficient protection against electromagnetic (EMI) and radio frequency interference (RFI) - for good, noise-free transmission behaviour. Thanks to the robust PVC jacket with high flexibility and abrasion resistance, the cable is suitable for live applications, studio and home recording.
Technical data
| Product type | Bulk Cable |
| Type | Microphone cable |
| Color | blue |
| Overall diameter | 6 mm |
| Center conductor cross section | 0.3 mm² |
| Center conductor material | Copper, OFC |
| Center conductor construction | 27 x 0.12 mm |
| Number of internal conductors | 2 |
| Shield material | Copper tin-plated |
| Shield | Braided screen |
| Line resistance | 64 Ohm(s) |
| Capacitance | 72 pF/m |
| Jacket material | PVC |
| Weight | 0,047 kg |
