Belt for Pocket Receivers/Transmitters
15.50 CHF *
abbastanza in stock;
subito disponibile
descrizione
Merkmale
Dati tecnici
Accesori
Articoli alternativi
Articolo similare
Variazioni
Alle Variationen zu diesem Artikeldescrizione

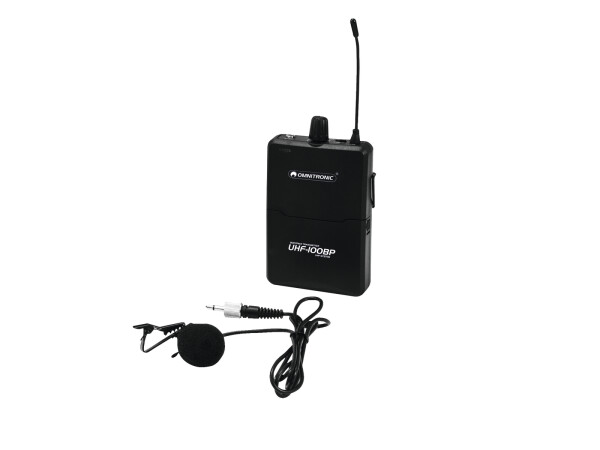

Artikelinfos im DetailPocket transmitter with lavalier microphone
- Pocket transmitter as UHF PLL system, matching receivers with the same carrier frequency
- Incl. lavalier microphone
- Sensitivity adjustable
- Available in the license-free frequency ranges 823-832 MHz and 863-865 MHz
- Operation via 2 x 1.5 V batteries, type AA
- License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
- On/off/mute-switch: Yes
| Carrier frequency: | 825.300 MHz |
| Coverage: | 50 m (with line-of-sight) |
| RF power output: | 10 mW |
| Modulation method: | F3E |
| S/N ratio: | >105 dB |
| Selectivity: | >80 dB |
| T.H.D.: | <0.5 % at 1 kHz |
| Connection: | 3.5 mm jack |
| Battery: | 2 x 1.5 V, type AA |
| Battery life: | approx. 10 hours |
| Dimensions (L x W x H): | 25 x 65 x 190 mm |
| Frequency band: | UHF 823 - 832 MHz |
| Weight: | 0,075 kg |
| Material: | Plastic |
| Frequency range: | 40 - 18000 Hz |
| Height: | 9,5 cm |
| Depths: | 2,3 cm |
| Width: | 6,6 cm |
Merkmale
| #productDetails.itemInformation# | #productDetails.itemValue# |
|---|---|
| Colore: | giallo |
| peso articolo: | 0,14 Kg |
Dati tecnici
| Type: | Pocket transmitter |
| Frequency band: | UHF 823 - 832 MHz |
| Frequency range: | 40 - 18000 Hz |
| S/N ratio: | >105 dB |
| Carrier frequency: | 825,3 MHz |
| Weight: | 0,10 kg |
| Transmitter | |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Battery: | 2 x Mignon (AA) (not included) |
| Range: | 50 m |
| Material: | Plastic |
| Width: | 2,5 cm |
| Height: | 19,0 cm |
| Depth: | 6,5 cm |
| Weight: | 0,075 kg |
| Microphone | |
| Polar pattern: | Cardioid |
| Cable length: | 0,95 m |
| Color: | Black |
| Capsule type: | Condenser |
| Weight: | 0,021 kg |
| RF power output: | 5 mW |
| Modulation method: | F3E |
| Selectivity: | >80 dB |
| T.H.D.: | <0.5 % at 1 kHz |
