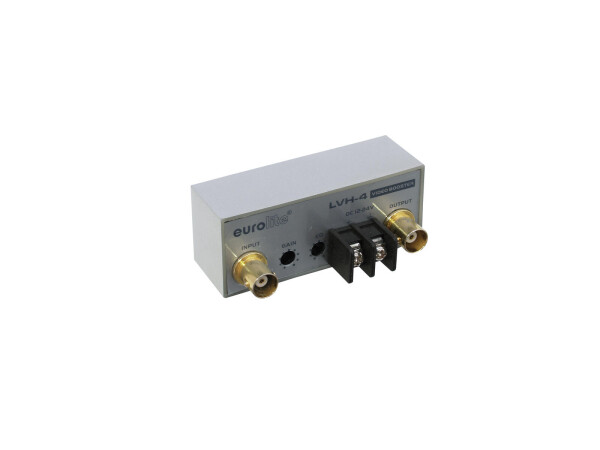

Artikelinfos im Detail The Video Booster amplifies your signal to keep the quality high even over long distances of up to 600 meters. Of course, it can also be used to amplify a naturally weak signal to reach the desired quality standard. All this comes in an extremely compact design.
Video line amplifier with equalizer
- Equalizes and compensates for signal losses inherent in long cable runs (max. 600 m)
- 75 ohms input and outputs via BNC plugs
- Separate controls for amplification and equalization
- Ultra compact
| Power supply: | 12-24 V DC 30 mA 12-24 V AC 30 mA |
| S/N ratio: | >70 dB |
| Dimensions: | Width: 7,6 cm Depth: 4,1 cm Height: 3,1 cm |
| Weight: | 70 g |
| 1 x video input: | 1 Vpp/ 75 ohms, BNC |
| 1 x video output: | 1 Vpp/ 75 ohms, BNC |
| Gain: | adjustable to +5 dB |
| Bandwidth: | 10 MHz |
| Equalization adjustment: | 0 dB to +4 dB/ 3.58 MHz |
| 0 dB to +7 dB/ 5 MHz |
Dati tecnici
| Power supply: | 12-24 V DC 30 mA 12-24 V AC 30 mA |
| S/N ratio: | >70 dB |
| Dimensions: | Width: 7,6 cm Depth: 4,1 cm Height: 3,1 cm |
| Weight: | 70 g |
| 1 x video input: | 1 Vpp/ 75 ohms, BNC |
| 1 x video output: | 1 Vpp/ 75 ohms, BNC |
| Gain: | adjustable to +5 dB |
| Bandwidth: | 10 MHz |
| Equalization adjustment: | 0 dB to +4 dB/ 3.58 MHz |
| 0 dB to +7 dB/ 5 MHz |
