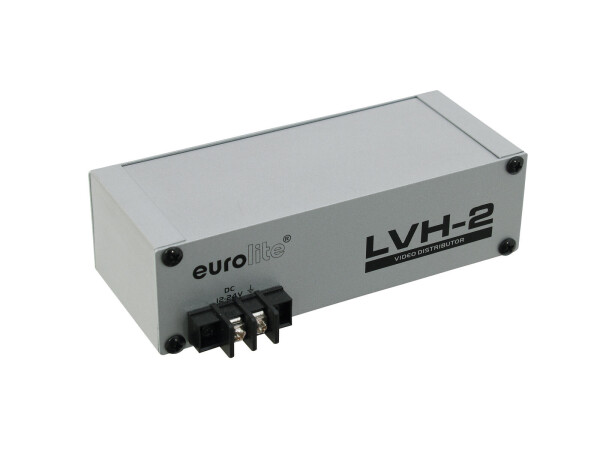

LVH-2 Video distribution amp

The video mail depot!Our attention tends to increase when images move. As television and videos are appealing to us they have many different purposes in our society of information and entertainment. If you wish to benefit from this too and are wondering how to distribute a video signal to multiple screens, for instance at a conference, then we highly recommend our EUROLITE LVH-2. It is equipped with four outputs, the amplification is manually adjustable and an extra feed-through output allows for linking multiple distributors with the same input signal. With our LVH-2 you go live in no time.

Video distribution amplifier 1:4

• Distributes 1 input to 4 outputs
• 1 parallel output for feed-through of the input signal
• 75 ohms input and outputs via BNC plugs
• Adjustable gain amplification
• 10 MHz bandwidth
• 1 V video signal indicator
• 12-24 V DC power supply via block terminals (PSU not included)

Power supply:	12-24 V DC 60 mA
Frequency range:	10 - 10000000 Hz
S/N ratio:	>70 dB
Gain:	0 dB to +6 dB
Dimensions:	Width: 14,6 cm Depth: 8,7 cm Height: 4,2 cm
Weight:	370 g
1 x video input:	1 Vpp/ 1 kohms (bridged), 75 ohms (terminated), BNC
5 x video outputs:	1 Vpp/ 75 ohms, BNC (1 feed-through output, 4 amplified outputs)
Output isolation:	>40 dB
Differential gain:	0.1%
Differential phase:	0.1 degree
