DMX cable XLR 3pin 3m bk
9.45 CHF *
disponibile
descrizione
Dati tecnici
Video
Accesori
Articoli alternativi
I Clienti hanno inoltre comprato i seguenti prodotti
Articolo similare
Variazioni
Alle Variationen zu diesem Artikeldescrizione

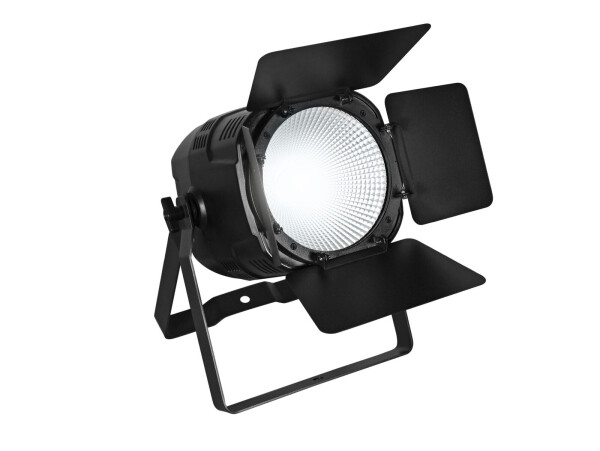

Artikelinfos im DetailLED theatre spot with 2in1 BCL CW/WW 100 W COB (chip-on-board) LED
- 1 powerful LED 100 W COB (chip-on-board) 2in1 BCL CW/WW
- Variable color temperature 2500 K - 5700 K
- Dimmer electronic
- Strobe effect
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; Master/slave function; Sound to light via Microphone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
- Flicker-free
- With a beam angle of 41°
- Very high color rendering index (CRI)
- With double bracket
- 4 digit 7-segment LED display
- For application areas such as: Theater; Wedding/gala/events; Trade fair and shop fitting; Stage
- Preprogrammed in Light´J; Light Captain
- Mains input and output for power linking up to 8 units
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x spotlight, 1 x power cord, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 85 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | T 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 1 x 100 W COB (chip-on-board) 2in1 BCL CW/WW |
| Color temperature: | 2500K - 5700K adjustable |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 2; 4; 5; 7 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; Master/slave function; Sound to light via Microphone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional) |
| Preprogrammed in: | Light´J; Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 41° |
| Beam angle (1/2 peak): | 41° |
| Beam angle (1/10 peak): | 65° |
| Color rendering index (CRI): | 95 Ra |
| Illuminance in Lux (lx): | Cold white (CW) 1m: 2573 lx, 3m: 296 lx, 6m: 90 lx Warm white (WW) 1m: 1413 lx, 3m: 176 lx, 6m: 53 lx All 1m: 3366 lx, 3m: 407 lx, 6m: 107 lx |
| Housing color: | Black matte |
| Attachment system: | Double bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Plastic; metal |
| Dimensions: | Width: 24,3 cm Depth: 31,1 cm Height: 32,0 cm |
| Weight: | 2,75 kg |
| Noise classification: | Class 2 (slight noise) |
| Photobiological safety: | Risk Group 0 |
| Power cord | |
| Cable construction: | 3 x 1,0 mm² H03VV-F |
| Cable length: | Approx. 1,2 m |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø11mm |
| Material: | Metal, 2,5 mm |
| Barndoor | |
| Material: | Metal, 0,8 mm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Dati tecnici
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 85 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | T 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 1 x 100 W COB (chip-on-board) 2in1 BCL CW/WW |
| Color temperature: | 2500K - 5700K adjustable |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 2; 4; 5; 7 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; Master/slave function; Sound to light via Microphone; Light´J; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); Light Captain |
| Beam angle: | 41° |
| Beam angle (1/2 peak): | 41° |
| Beam angle (1/10 peak): | 65° |
| Color rendering index (CRI): | 95 Ra |
| Illuminance in Lux (lx): | Cold white (CW) 1m: 1939 lx, 3m: 256 lx, 6m: 77 lx Warm white (WW) 1m: 590 lx, 3m: 79 lx, 6m: 20 lx All 1m: 2432 lx, 3m: 323 lx, 6m: 96 lx |
| Housing color: | Black |
| Attachment system: | Double bracket |
| Display type: | 4 digits 7-segment LED display |
| Dimensions: | Width: 24,3 cm Depth: 31,1 cm Height: 32,0 cm |
| Weight: | 2,75 kg |
| Noise classification: | Class 2 (slight noise) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
