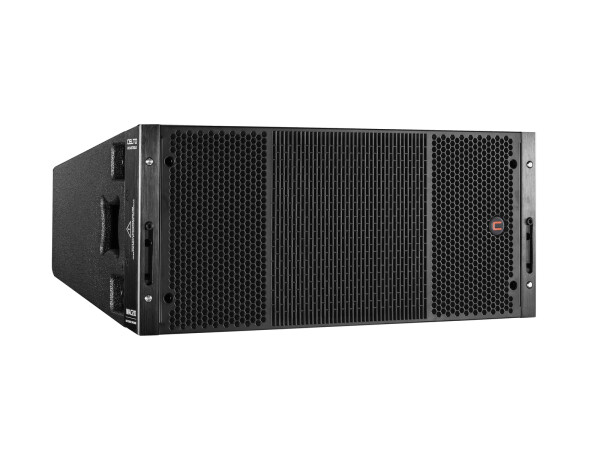

Artikelinfos im DetailLine array with integrated rigging system
- Real 700 W + 110 W RMS power capacity
- For audiences with up to 30,000 persons
- Up to 16 speakers per array with 10 times safety standard
- Premium custom made drivers
- Aquaplased TC4 diaphragm for ultra smooth HF reproduction
- Proprietary isophase wave-shaping acoustic lens
- Touring-grade textured coating finish
- Wheelboard optional
- Built with NEUTRIK connector
- CELTO ACOUSTIQUE driver
- For application areas such as: Theater; concerts/FoH's; sports centres/gyms
Package contents
- 1 x top
| Power: | Program: 220W HF Rated: 110W RMS HF Rated: 700W RMS LF Program: 1400W LF |
| Frequency range: | 50 - 18000 Hz in full-range mode |
| Sensitivity: | 99 dB (1W/1m) LF; 109 dB (1W/1m) HF |
| Max. SPL: | 136 dB |
| Dispersion angle: | 100° x 15° (array dependent) |
| Impedance: | 8/16 ohms Biamp |
| Attachment system: | Flange: |
| Flying points: | With integrate rigging system |
| Connections: | Speaker via 2 x 4-pol SpeakON mounting version (F) |
| Crossover frequency: | Bi-amp mode only with external DSP processor 1000 Hz, 24db/oct on LF & HF Recommended Low-pass 80-120 Hz, 24db/oct with subwoofer |
| Speaker: | 2 x midrange speaker with neodymium magnet Basket material: aluminum Voice coil midrange speaker 2,5" Diaphragmmaterial: Aquaplased TC4 1 x compression tweeter highs 1,5" with neodymium magnet Ferrofluid voice coil compression tweeter highs 2,8" |
| Transport aid: | Wheelboard optional |
| Use of brands: | Built with NEUTRIK connector CELTO ACOUSTIQUE driver |
| Material: | Baltic birch plywood, 18 mm, CNC made with tongue and grove assembly |
| Color: | Black, matte |
| Dimensions: | Width: 70 cm Depth: 30,5 cm Height: 46,5 cm |
| Weight: | 29,80 kg |
Dati tecnici
| Power: | Peak: 2800W LF Program: 1400W LF Rated: 700W RMS LF Peak: 440W HF Program: 220W HF Rated: 110W RMS HF |
| Frequency range: | 50 - 18000 Hz in full-range mode |
| Sensitivity: | 99 dB (1W/1m) LF; 109 dB (1W/1m) HF |
| Max. SPL: | 137 dB |
| Dispersion angle: | 100° x 15° (array dependent) |
| Impedance: | 8/16 ohms Biamp |
| Attachment system: | QuickFly system |
| Flying points: | With integrate rigging system |
| Connections: | 2 x 4-pol SpeakON mounting version (F) |
| Crossover frequency: | Bi-amp mode only with external DSP processor 1000 Hz, 24db/oct on LF & HF Recommended Low-pass 80-120 Hz, 24db/oct with subwoofer |
| Speaker: | 2 x midrange speaker 10" with neodymium magnet Basket material: aluminum With phase plug Voice coil midrange speaker 2,5" 1 x compression tweeter highs 1,5" with neodymium magnet Ferrofluid voice coil compression tweeter highs 3" Diaphragmmaterial: treated titanium with wave guide |
| Type of construction: | Vented |
| Transport aid: | Wheelboard optional |
| Use of brands: | Built with NEUTRIK connector CELTO ACOUSTIQUE driver |
| Material: | Baltic birch plywood, 18 mm, CNC made with tongue and grove assembly |
| Color: | Black, matte |
| Dimensions: | Width: 70 cm Depth: 30,5 cm Height: 46,5 cm |
| Weight: | 29,80 kg |
