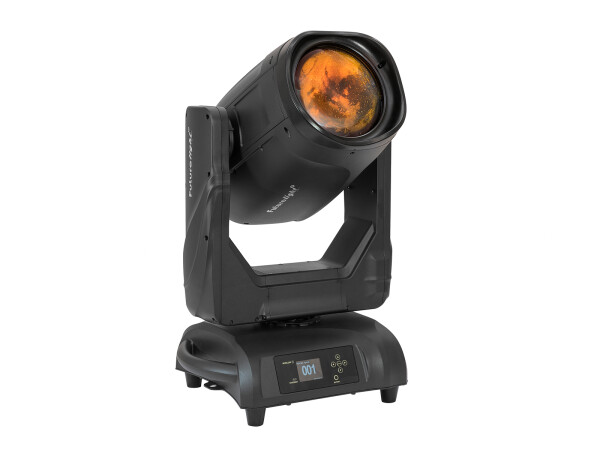

Artikelinfos im DetailWeather-proof beam moving head (IP65) with 420 W discharge lamp & CRMX wireless receiver
- Light source: USHIO NSL 420S discharge lamp (2000 hrs)
- Lamp installed and adjusted ex factory
- Positioning within 540° PAN, 265° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Prism honeycomb rotating; prism 8-fold rotating; focus motor-driven; gobo wheel with static gobos; color wheel
- Color wheel with 13 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 14 gobos und open
shake effect - Integrated show programs
- The device is cooled by temperature-controlled fan
- Control via stand-alone; master/slave function; DMX; RDM; CRMX by LumenRadio; ArtNet; sACN; sound to light via microphone
- With a beam angle of 1°
- With bracket with hinged hooks
- Multicolor LCD display,
with battery buffering for easy controlling - Suitable for outdoor use
- Scenes user-definable; pulse effect adjustable
- Strobe effect
- Preprogrammed in Light Captain
- For application areas such as: Stage; Rental
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x XLR cable, 1 x power cord, 2 x holder
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 420 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) power supply cord with safety plug (provided) |
| Fuse: | 5 x 20 mm, T 5 A |
| Lamp type: | Discharge lamp |
| Max. TILT movement: | 265° Exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° Exact positioning (16 bit resolution) auto position correction (feedback) |
| Equipment: | Prism honeycomb rotating; prism 8-fold rotating; focus motor-driven; gobo wheel with static gobos; color wheel |
| Color generation: | Color wheel with 13 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with static gobos, 14 gobos und open Shake effect |
| DMX channels: | 18 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; master/slave function; DMX; RDM; CRMX by LumenRadio; ArtNet; sACN; sound to light via microphone |
| Preprogrammed in: | Light Captain |
| Carrier frequency: | 2,4 GHz |
| Beam angle: | 1° |
| Beam angle (1/2 peak): | 1° |
| Housing color: | Black |
| Attachment system: | 2x bracket with hinged hooks |
| Display type: | Multicolor LCD display battery buffering |
| Connections: | 2 x RJ-45 (F) mounting version |
| Dimensions: | Width: 45 cm Depth: 35 cm Height: 76 cm |
| Weight: | 39,70 kg |
| Noise classification: | Class 4 (loud noises) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Dati tecnici
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 420 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) power supply cord with safety plug (provided) |
| Fuse: | 5 x 20 mm, T 5 A |
| Lamp type: | Discharge lamp |
| Max. TILT movement: | 265° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Equipment: | Prism honeycomb rotating; prism 8-fold rotating; focus motor-driven; gobo wheel with static gobos; color wheel |
| Color generation: | Color wheel with 13 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with static gobos, 14 gobos und open Shake effect |
| DMX channels: | 18 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; master/slave function; DMX; RDM; CRMX by LumenRadio; Art-Net; sACN; sound to light via microphone |
| Preprogrammed in: | Light Captain |
| Carrier frequency: | 2,4 GHz |
| Beam angle: | 1° |
| Beam angle (1/2 peak): | 1° |
| Housing color: | Black |
| Attachment system: | 2x bracket with hinged hooks |
| Display type: | Multicolor LCD display battery buffering |
| Connections: | 2 x RJ-45 (F) mounting version |
| Dimensions: | Width: 45 cm Depth: 35 cm Height: 76 cm |
| Weight: | 39,70 kg |
| Noise classification: | Class 4 (loud noises) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
