Global Truss

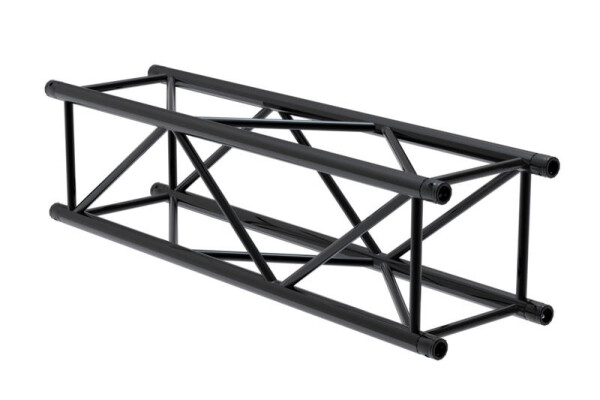

F44 P 300cm stage black

numero articolo: BKF44300P-B EAN: 4042659009504 categoria: F44 P Rette

Length: 300 cm
Pipe diameter: 50 mm
Wall thickness: 3 mm
TÜV Certified

disponibile

MSRP: ~~845.00 CHF~~

628.00 CHF

25%

incl. 8,1% USt. , in aggiunta

Pagare in modo sicuro tramite:

Articolo similare

The F44P truss series by Global Truss is a TÜV approved 4-point system with an external dimension of 40cm. The system off ers an outstanding load capacity and low deflection, ideal for complex constructions with high loads, along with stage systems and permanent installations. The characteristics of this truss is perfect for heavy duty tower applications. Due to the higher main tube wall thickness even greater loads can be supported than with the F44 are possible. Nevertheless both systems are compatible with each other. A maximum span of up to 20 meters can be created with this system.

&nbsp.

The F44P truss is built with 50 x 3mm main tubes and 25 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.

#productDetails.itemInformation#	#productDetails.itemValue#
Colore:	nero
Lunghezza cm:	300
peso articolo:	28,00 Kg

General

Colour black
TÜV certificate Yes
Material Al EN AW-6082 T6

Technical Data

Number of points 4-point
Edge dimension 40 cm
System F44P
Type straight
Truss length 300 cm

main pipe

Diameter main pipe 50 mm
Wall thickness main pipe 3 mm

Brace

Diameter Brace 25 mm
Wall thickness Brace 3 mm

Hardware

Dimensions (L/W/H) 3000 x 400 x 400 mm
Weight 21,70 kg
